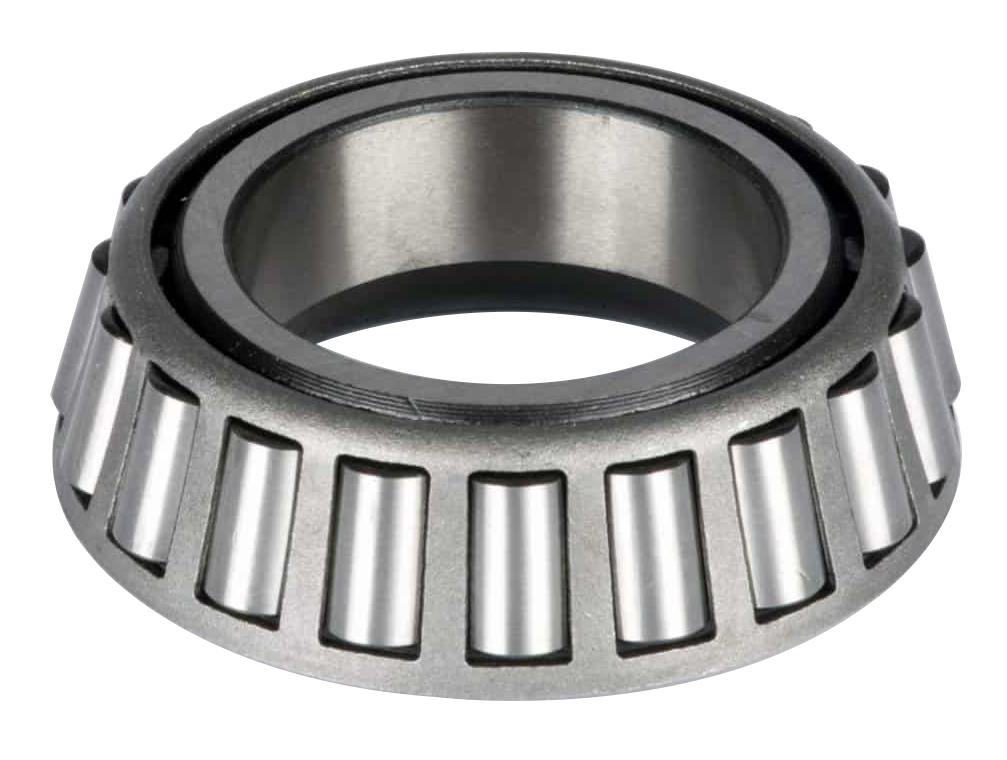

X33117

Product Attributes

Part Number	X33117
Type	Cones
System of Measurement	Metric
Bearing Type	Roller
Roller Bearing Type	Tapered Roller
For Load Direction	Combined Radial and Thrust
Construction	Single Row
Seal Type	Open
Series	33117
Bore Dia	85 mm
Bore Dia Tolerance	-0.02mm to 0
Cone Width	41 mm
Cone Width Tolerance	-0.15mm to 0
Cone Backface ToClear Radius	2.54 mm
Cone Frontface Backing Diameter	96 mm
Cone Backface Backing Diameter	102 mm
Cage Cone Frontface Clearance	3.3 mm
Cage Cone Backface Clearance	4.1 mm
Effective Center Location	-8.1 mm
Ring Material	52100 Chrome Steel
Cage Material	Steel
Dynamic Radial Load	57150 lbf
Static Radial Load	86850 lbf
Dynamic Radial Rating(90 Million Revolutions)(C90)	14805 lbf
Dynamic Radial Rating(Two Row 1 Million Revolutions)(C1)	99450 lbf
Dynamic Thrust Rating(90 Million Revolutions)(Ca90)	10305 lbf
Dynamic Radial Rating(Two Row 90 Million Revolutions)(C90)	25875 lbf
Temperature Range	-30° to 110 °C
ABEC Rating	ABEC-1
Radial Clearance	Standard (Available in C3/C4/C5)
RoHS	Compliant
REACH	Compliant
