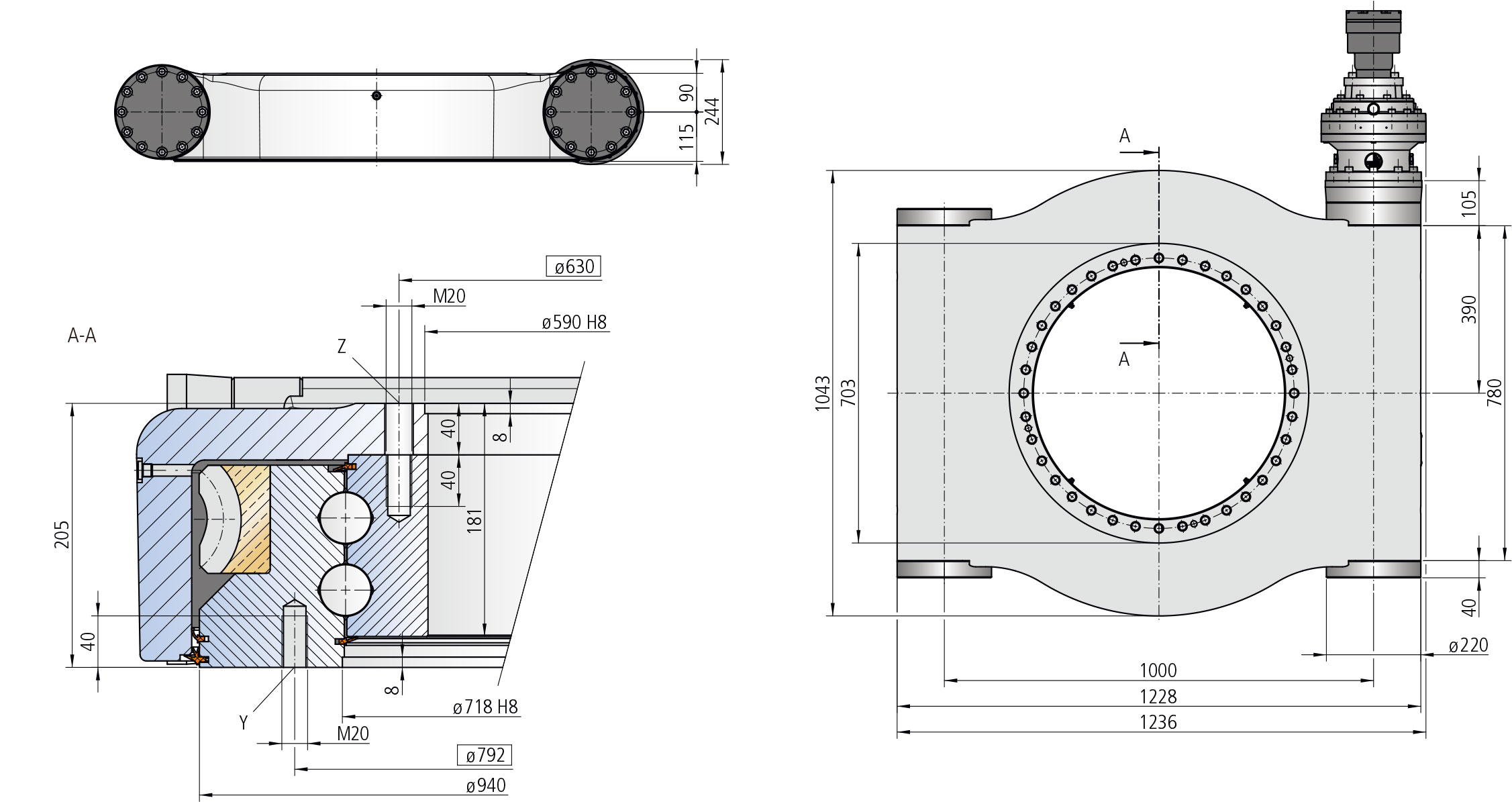

WD-LC 0713 / 2-row / 1 drive

Product Attributes

Part Number	WD-LC 0713 / 2-row / 1 drive
Product Type	Slewing Beraing
System of Measurement	Metric
Diametral Pitch Or Module	(12)
Number Of Threads Of The Worm	2
Basic Dynamic Load Rating(Ca)	263025 lbs
Basic Static Load Rating(C0a)	1749825 lbs
Basic Static Load Rating(C0a)	250K lbs greater
Basic Dynamic Load Rating(Cr)	225675 lbs
Basic Static Load Rating(C0r)	653850 lbs
Basic Static Load Rating(C0r)	100K lbs greater
Ball Materrial	52100 Chrome Steel
Weight	1132 Kg
Slew Drive Gear Ratio	37.5
Self Locking Gears	No**
Max Torque	102513 Nm
Nom Torques	102513 Nm
Max Holding Torque	102513
Pressure Differential	192
Oil Flow	69 1/min
Output Speed	1
Max Achievable Torque	102513 Nm

AUB Bearing Company is a manufacturer of various types of bearings, including deep groove ball bearings, thin section bearings, angular contact ball bearings, cylindrical roller bearings, tapered roller bearings, and spherical roller bearings. AUB's bearings are used in a wide range of applications, including automotive, wind energy, railway, mining, agriculture, and construction machinery. Our company's bearings are known for their high-performance, durability, and long service life.

AUB Bearing Company has a strong focus on research and development and invests heavily in new technologies and processes. The company's goal is to provide high-quality bearings that meet or exceed customer expectations in terms of performance, reliability, and durability.AUB offers customized bearing manufacturing solutions to meet the specific needs of its customers. The company has a team of experienced engineers who can design and develop bearings to meet specific requirements, such as high-speed, high-temperature, or corrosive environments.

AUB has a strong quality control system and follows rigorous testing procedures to ensure that its bearings meet international standards. The company has received certifications such as ISO 9001, ISO/TS 16949, and ISO 14001.

If you have any questions, please feel free to contact our bearing experts. 7*24 service for you. Email: info@aubearing.com.

Aubearing is an ISO certified Chinese bearing manufacturer and supplier. Competitive prices, 1,200,000+ SKU inventory, including internationally renowned brands such as SKF, Timken, Schaeffler (FAG, INA), NSK, KOYO, NTN, McGill, etc. Aubearing has invested in 300+ equipment, heat treatment facilities, lathes, grinders, milling machines, bearing production lines, CMMs, metallographic testers, etc. Leading Time<7 Days, MOQ=1.

Bearing Catalogue

Various types of ball bearings and roller bearings, size range: 1mm-2000mm. Including thin section bearings (KAYDON equivalents and 67, 68, 69 series), ceramic bearings, stainless steel bearings, deep groove ball bearings, angular contact bearings, thrust ball bearings, spherical roller bearings, cylindrical roller bearings, needle roller bearings, tapered roller bearings, precision crossed roller bearings, bushings (sleeve bearings), linear bearings, automotive wheel hub bearings and corresponding inch series.

Customization options: material (Gcr15, silicon nitride, silicon carbide, zirconium oxide, aluminum oxide, stainless steel 304, 316, 420, 440, PTFE\PEEK\nylon and other plastics), cage (brass, stamping steel, retainer), lubrication (lubricating oil, grease, high temperature resistance), clearance (C2\CN\C3\C4\C5), seal (nitrile rubber, silicone rubber, fluororubber, polypropylene rubber), shielding, etc.

WD-LC 0713 / 2-row / 1 drive
