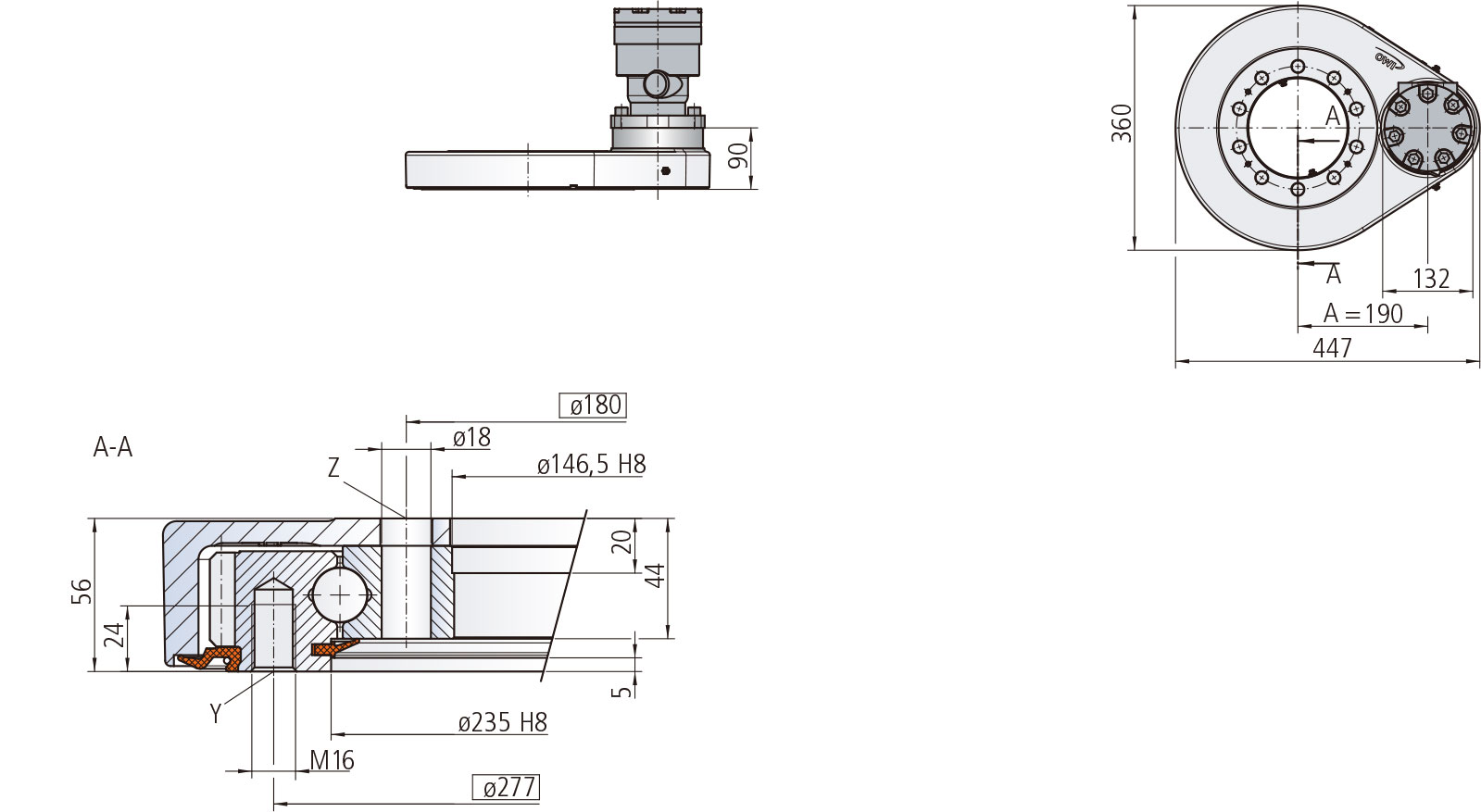

SP-I 0229

Product Attributes

Part Number	SP-I 0229
Product Type	Slewing Beraing
System of Measurement	Metric
Diametral Pitch Or Module	(4)
Number Of Teeth Pinion	15
Number Of Wheel Teeth	79
Basic Dynamic Load Rating(Ca)	39600 lbs
Basic Static Load Rating(C0a)	95850 lbs
Basic Static Load Rating(C0a)	80K-100K lbs
Basic Dynamic Load Rating(Cr)	33975 lbs
Basic Static Load Rating(C0r)	35775 lbs
Basic Static Load Rating(C0r)	30K-40K lbs
Ball Materrial	52100 Chrome Steel
Weight	46 Kg
Slew Drive Gear Ratio	5.27
Max Torque	3002 Nm
Nom Torques	2607 Nm
Max Holding Torque	3002
Pressure Differential	150
Oil Flow	13 1/min
Output Speed	5
Max Achievable Torque	3002 Nm
