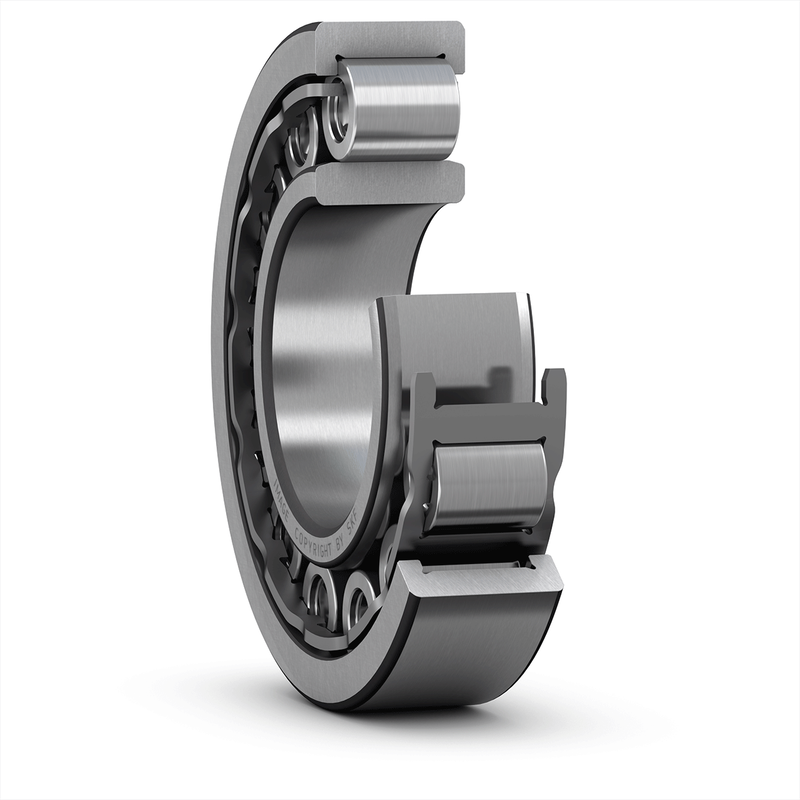

NU 30/600 ECMA/HA1

Product Attributes

Part Number	NU 30/600 ECMA/HA1
System of Measurement	Metric
Roller Bearing Type	Cylindrical
For Load Direction	Combined Radial and Thrust
Construction	Single Row
Inner Ring Type	With Inner Ring
Seal Type	Open
Bore Dia	600 mm
Bore Dia Tolerance	-0.05mm to 0
Outer Dia	870 mm
Outer Dia Tolerance	-0.10mm to 0
Width	200 mm
Width Tolerance	-0.50mm to 0
Shoulder Diameter Of Outer Ring	796 mm
Raceway Diameter Of Inner Ring	661 mm
Chamfer Dimension r1,2(min.)	6 mm
Permissible Axial Displacement(max.)	14.5 mm
Ring Material	52100 Chrome Steel
Roller Material	52100 Chrome Steel
Cage Material	Brass cage, outer ring centred
Dynamic Load Rating	5390 kN
Static Load Rating	11000 kN
Max Speed (X1000 rpm)	1
Lubrication	Grease, Oil
Temperature Range	-30° to 110 °C
RoHS	Compliant
REACH	Compliant
Weight	420 kg
