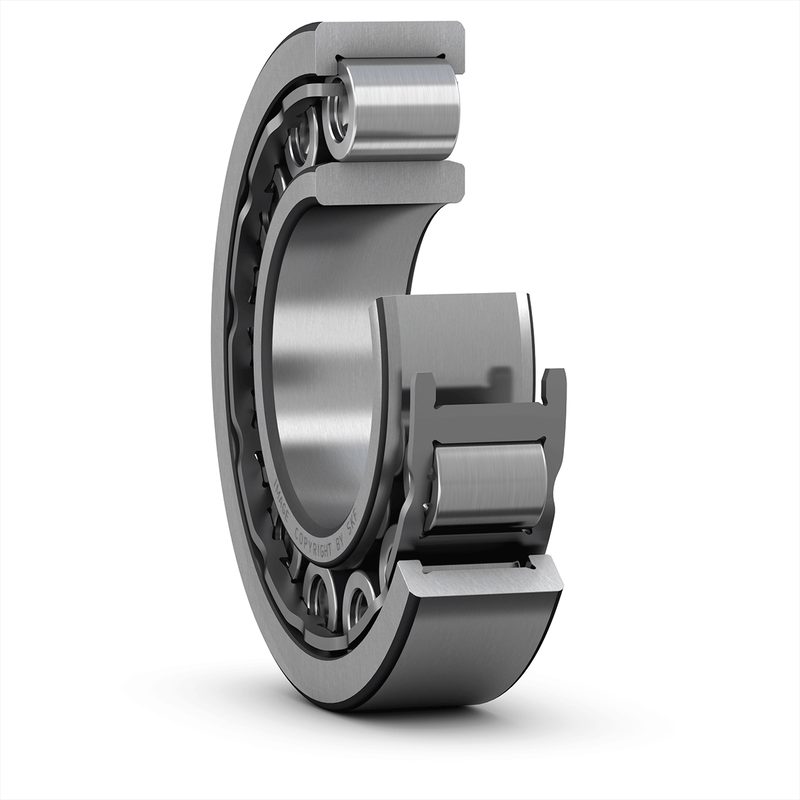

NU 29/560 ECMA

Product Attributes

Part Number	NU 29/560 ECMA
System of Measurement	Metric
Roller Bearing Type	Cylindrical
For Load Direction	Combined Radial and Thrust
Construction	Single Row
Inner Ring Type	With Inner Ring
Seal Type	Open
Bore Dia	560 mm
Bore Dia Tolerance	-0.05mm to 0
Outer Dia	750 mm
Outer Dia Tolerance	-0.075mm to 0
Width	112 mm
Width Tolerance	-0.50mm to 0
Shoulder Diameter Of Outer Ring	693 mm
Raceway Diameter Of Inner Ring	608 mm
Chamfer Dimension r1,2(min.)	5 mm
Permissible Axial Displacement(max.)	4.5 mm
Ring Material	52100 Chrome Steel
Roller Material	52100 Chrome Steel
Cage Material	Brass cage, outer ring centred
Dynamic Load Rating	2460 kN
Static Load Rating	5700 kN
Max Speed (X1000 rpm)	1
Lubrication	Grease, Oil
Temperature Range	-30° to 110 °C
RoHS	Compliant
REACH	Compliant
Weight	145 kg

AUB Bearing Company is a manufacturer of various types of bearings, including deep groove ball bearings, thin section bearings, angular contact ball bearings, cylindrical roller bearings, tapered roller bearings, and spherical roller bearings. AUB's bearings are used in a wide range of applications, including automotive, wind energy, railway, mining, agriculture, and construction machinery. Our company's bearings are known for their high-performance, durability, and long service life.

AUB Bearing Company has a strong focus on research and development and invests heavily in new technologies and processes. The company's goal is to provide high-quality bearings that meet or exceed customer expectations in terms of performance, reliability, and durability.AUB offers customized bearing manufacturing solutions to meet the specific needs of its customers. The company has a team of experienced engineers who can design and develop bearings to meet specific requirements, such as high-speed, high-temperature, or corrosive environments.

AUB has a strong quality control system and follows rigorous testing procedures to ensure that its bearings meet international standards. The company has received certifications such as ISO 9001, ISO/TS 16949, and ISO 14001.

If you have any questions, please feel free to contact our bearing experts. 7*24 service for you. Email: info@aubearing.com.

Aubearing is an ISO certified Chinese bearing manufacturer and supplier. Competitive prices, 1,200,000+ SKU inventory, including internationally renowned brands such as SKF, Timken, Schaeffler (FAG, INA), NSK, KOYO, NTN, McGill, etc. Aubearing has invested in 300+ equipment, heat treatment facilities, lathes, grinders, milling machines, bearing production lines, CMMs, metallographic testers, etc. Leading Time<7 Days, MOQ=1.

Bearing Catalogue

Various types of ball bearings and roller bearings, size range: 1mm-2000mm. Including thin section bearings (KAYDON equivalents and 67, 68, 69 series), ceramic bearings, stainless steel bearings, deep groove ball bearings, angular contact bearings, thrust ball bearings, spherical roller bearings, cylindrical roller bearings, needle roller bearings, tapered roller bearings, precision crossed roller bearings, bushings (sleeve bearings), linear bearings, automotive wheel hub bearings and corresponding inch series.

Customization options: material (Gcr15, silicon nitride, silicon carbide, zirconium oxide, aluminum oxide, stainless steel 304, 316, 420, 440, PTFE\PEEK\nylon and other plastics), cage (brass, stamping steel, retainer), lubrication (lubricating oil, grease, high temperature resistance), clearance (C2\CN\C3\C4\C5), seal (nitrile rubber, silicone rubber, fluororubber, polypropylene rubber), shielding, etc.
