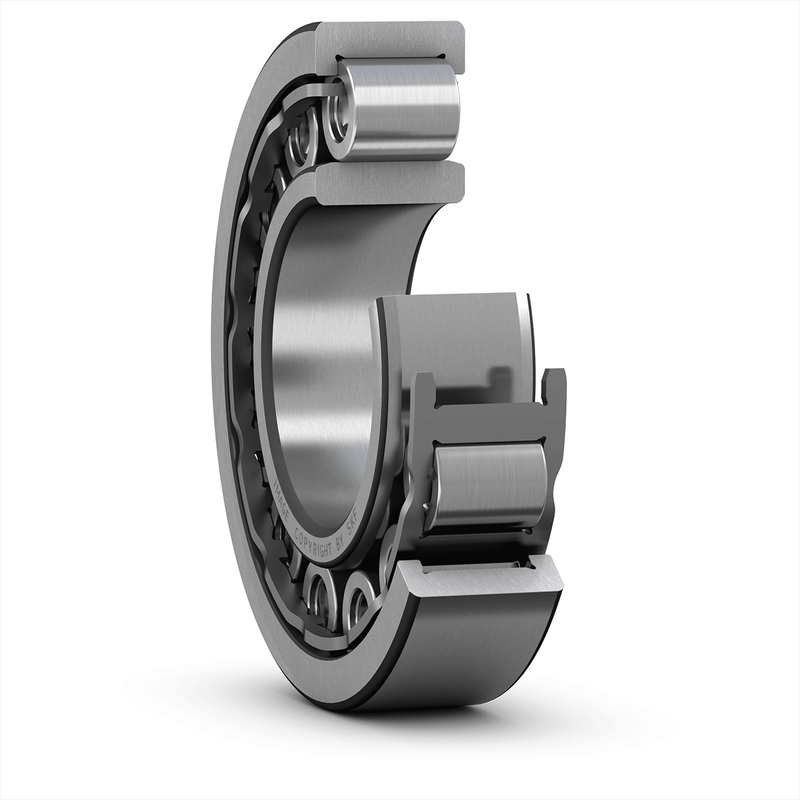

NU 2072 ECMA

Product Attributes

Part Number	NU 2072 ECMA
System of Measurement	Metric
Roller Bearing Type	Cylindrical
For Load Direction	Combined Radial and Thrust
Construction	Single Row
Inner Ring Type	With Inner Ring
Seal Type	Open
Bore Dia	360 mm
Bore Dia Tolerance	-0.04mm to 0
Outer Dia	540 mm
Outer Dia Tolerance	-0.05mm to 0
Width	106 mm
Width Tolerance	-0.40mm to 0
Shoulder Diameter Of Outer Ring	486 mm
Raceway Diameter Of Inner Ring	405 mm
Chamfer Dimension r1,2(min.)	5 mm
Permissible Axial Displacement(max.)	8.9 mm
Ring Material	52100 Chrome Steel
Roller Material	52100 Chrome Steel
Cage Material	Brass cage, outer ring centred
Dynamic Load Rating	1940 kN
Static Load Rating	3600 kN
Max Speed (X1000 rpm)	2
Lubrication	Grease, Oil
Temperature Range	-30° to 110 °C
RoHS	Compliant
REACH	Compliant
Weight	92 kg
