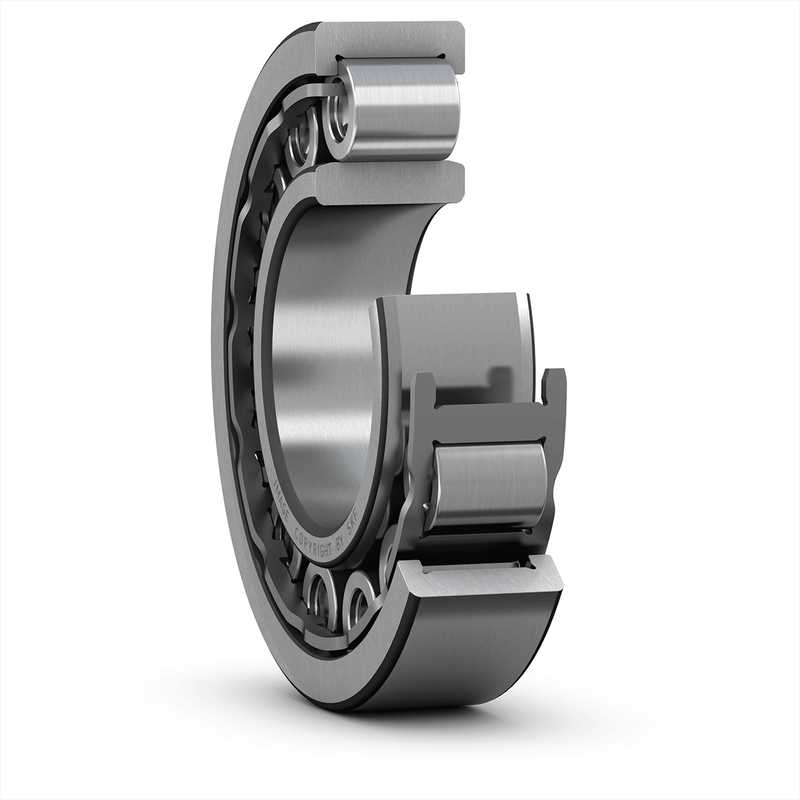

NU 19/670 ECMA

Product Attributes

Part Number	NU 19/670 ECMA
System of Measurement	Metric
Roller Bearing Type	Cylindrical
For Load Direction	Combined Radial and Thrust
Construction	Single Row
Inner Ring Type	With Inner Ring
Seal Type	Open
Bore Dia	670 mm
Bore Dia Tolerance	-0.075mm to 0
Outer Dia	900 mm
Outer Dia Tolerance	-0.10mm to 0
Width	103 mm
Width Tolerance	-0.75mm to 0
Shoulder Diameter Of Outer Ring	824 mm
Raceway Diameter Of Inner Ring	728 mm
Chamfer Dimension r1,2(min.)	6 mm
Permissible Axial Displacement(max.)	13 mm
Ring Material	52100 Chrome Steel
Roller Material	52100 Chrome Steel
Cage Material	Brass cage, outer ring centred
Dynamic Load Rating	2330 kN
Static Load Rating	4750 kN
Max Speed (X1000 rpm)	1
Lubrication	Grease, Oil
Temperature Range	-30° to 110 °C
RoHS	Compliant
REACH	Compliant
Weight	195 kg
