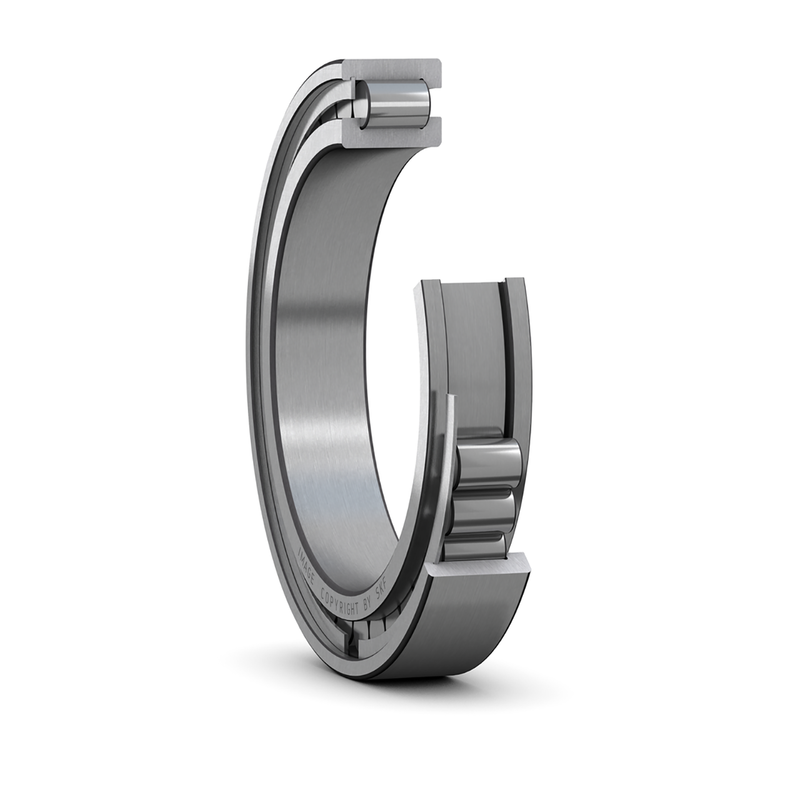

NCF 3080 CV

Product Attributes

Part Number	NCF 3080 CV
System of Measurement	Metric
Roller Bearing Type	Cylindrical
For Load Direction	Combined Radial and Thrust
Construction	Single Row Full Complement
Inner Ring Type	With Inner Ring
Seal Type	Open
Bore Dia	400 mm
Bore Dia Tolerance	-0.04mm to 0
Outer Dia	600 mm
Outer Dia Tolerance	-0.05mm to 0
Width	148 mm
Width Tolerance	-0.40mm to 0
Shoulder Diameter Inner Ring	460 mm
Shoulder Diameter Outer Ring	540 mm
Raceway Diameter Outer Ring	558 mm
Chamfer Dimension r1,2(min.)	5 mm
Permissible Axial Displacement(max.)	14 mm
Ring Material	52100 Chrome Steel
Roller Material	52100 Chrome Steel
Cage Material	Full complement of rollers (no cage)
Dynamic Load Rating	2970 kN
Static Load Rating	5500 kN
Max Speed (X1000 rpm)	1
Lubrication	Grease, Oil
Temperature Range	-30° to 110 °C
RoHS	Compliant
REACH	Compliant
Weight	145 kg
