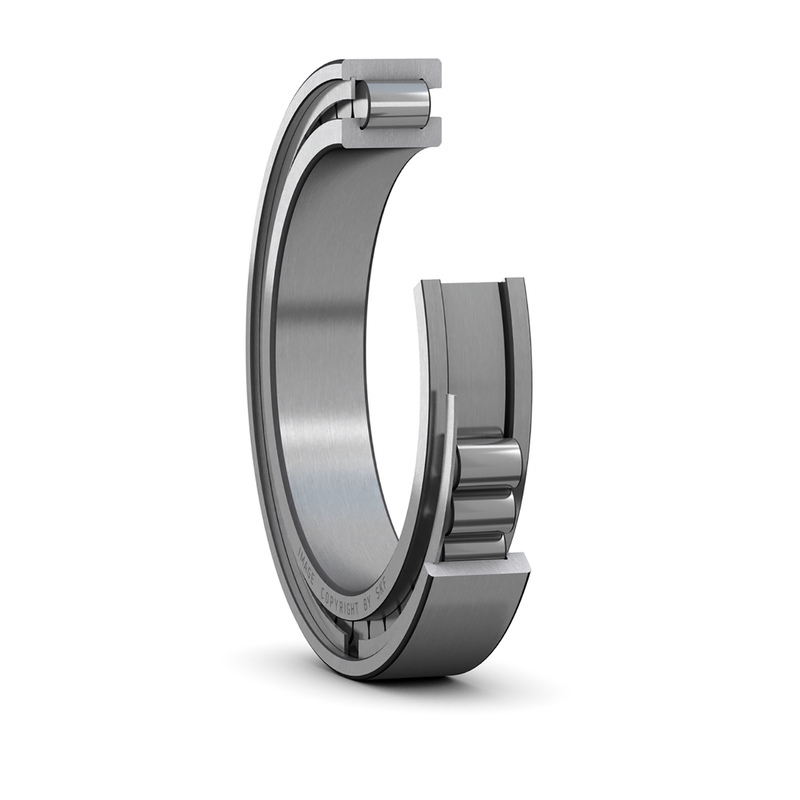

NCF 3032 CV

Product Attributes

Part Number	NCF 3032 CV
System of Measurement	Metric
Roller Bearing Type	Cylindrical
For Load Direction	Combined Radial and Thrust
Construction	Single Row Full Complement
Inner Ring Type	With Inner Ring
Seal Type	Open
Bore Dia	160 mm
Bore Dia Tolerance	-0.025mm to 0
Outer Dia	240 mm
Outer Dia Tolerance	-0.03mm to 0
Width	60 mm
Width Tolerance	-0.25mm to 0
Shoulder Diameter Inner Ring	185 mm
Shoulder Diameter Outer Ring	215 mm
Raceway Diameter Outer Ring	224.86 mm
Chamfer Dimension r1,2(min.)	2.1 mm
Chamfer Dimension r3,4(min.)	1.1 mm
Permissible Axial Displacement(max.)	7 mm
Ring Material	52100 Chrome Steel
Roller Material	52100 Chrome Steel
Cage Material	Full complement of rollers (no cage)
Dynamic Load Rating	512 kN
Static Load Rating	800 kN
Max Speed (X1000 rpm)	2
Lubrication	Grease, Oil
Temperature Range	-30° to 110 °C
RoHS	Compliant
REACH	Compliant
Weight	9.1 kg
