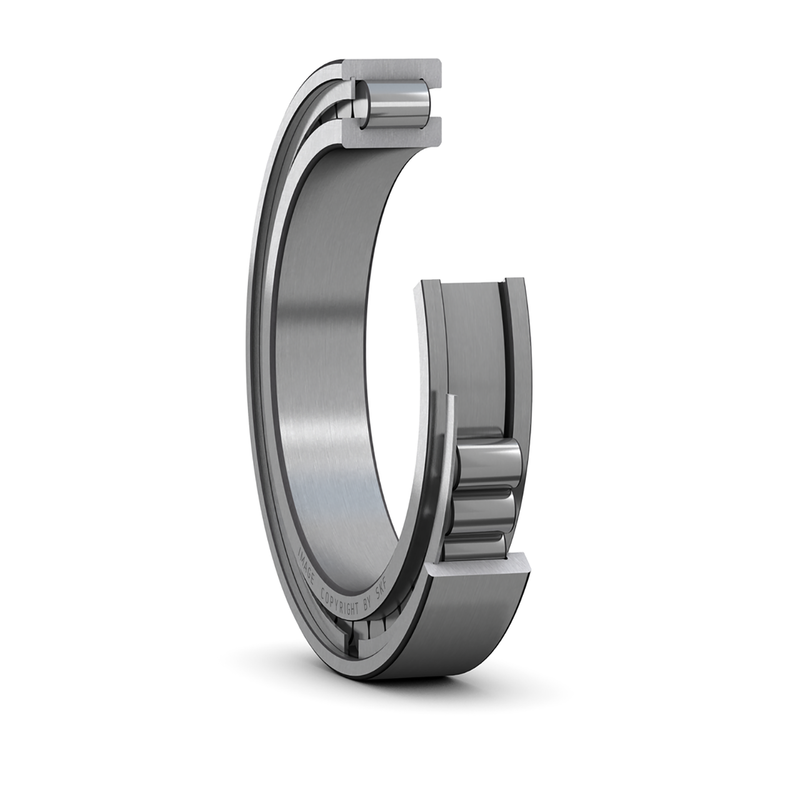

NCF 29/600 V

Product Attributes

Part Number	NCF 29/600 V
System of Measurement	Metric
Roller Bearing Type	Cylindrical
For Load Direction	Combined Radial and Thrust
Construction	Single Row Full Complement
Inner Ring Type	With Inner Ring
Seal Type	Open
Bore Dia	600 mm
Bore Dia Tolerance	-0.05mm to 0
Outer Dia	800 mm
Outer Dia Tolerance	-0.075mm to 0
Width	118 mm
Width Tolerance	-0.50mm to 0
Shoulder Diameter Inner Ring	662 mm
Shoulder Diameter Outer Ring	726 mm
Raceway Diameter Outer Ring	754 mm
Chamfer Dimension r1,2(min.)	5 mm
Permissible Axial Displacement(max.)	7 mm
Ring Material	52100 Chrome Steel
Roller Material	52100 Chrome Steel
Cage Material	Full complement of rollers (no cage)
Dynamic Load Rating	3360 kN
Static Load Rating	7500 kN
Lubrication	Grease, Oil
Temperature Range	-30° to 110 °C
RoHS	Compliant
REACH	Compliant
Weight	165 kg
