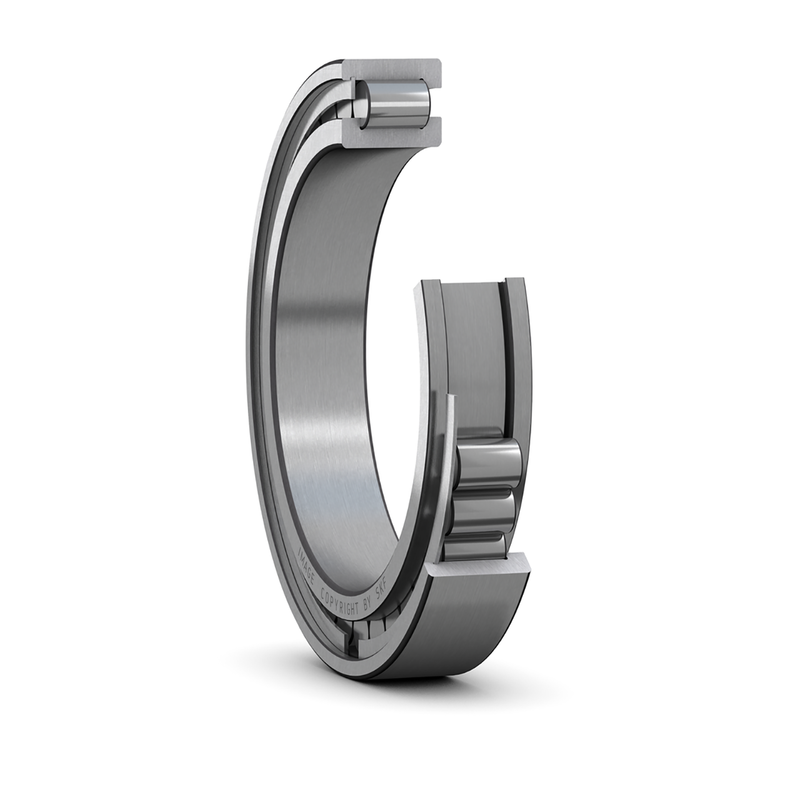

NCF 18/950 V

Product Attributes

Part Number	NCF 18/950 V
System of Measurement	Metric
Roller Bearing Type	Cylindrical
For Load Direction	Combined Radial and Thrust
Construction	Single Row Full Complement
Inner Ring Type	With Inner Ring
Seal Type	Open
Bore Dia	950 mm
Bore Dia Tolerance	-0.10mm to 0
Outer Dia	1150 mm
Outer Dia Tolerance	-0.125mm to 0
Width	90 mm
Width Tolerance	-1.00mm to 0
Shoulder Diameter Inner Ring	1021 mm
Shoulder Diameter Outer Ring	1087 mm
Raceway Diameter Outer Ring	1103 mm
Chamfer Dimension r1,2(min.)	5 mm
Permissible Axial Displacement(max.)	10 mm
Ring Material	52100 Chrome Steel
Roller Material	52100 Chrome Steel
Cage Material	Full complement of rollers (no cage)
Dynamic Load Rating	2420 kN
Static Load Rating	6300 kN
Lubrication	Grease, Oil
Temperature Range	-30° to 110 °C
RoHS	Compliant
REACH	Compliant
Weight	185 kg
