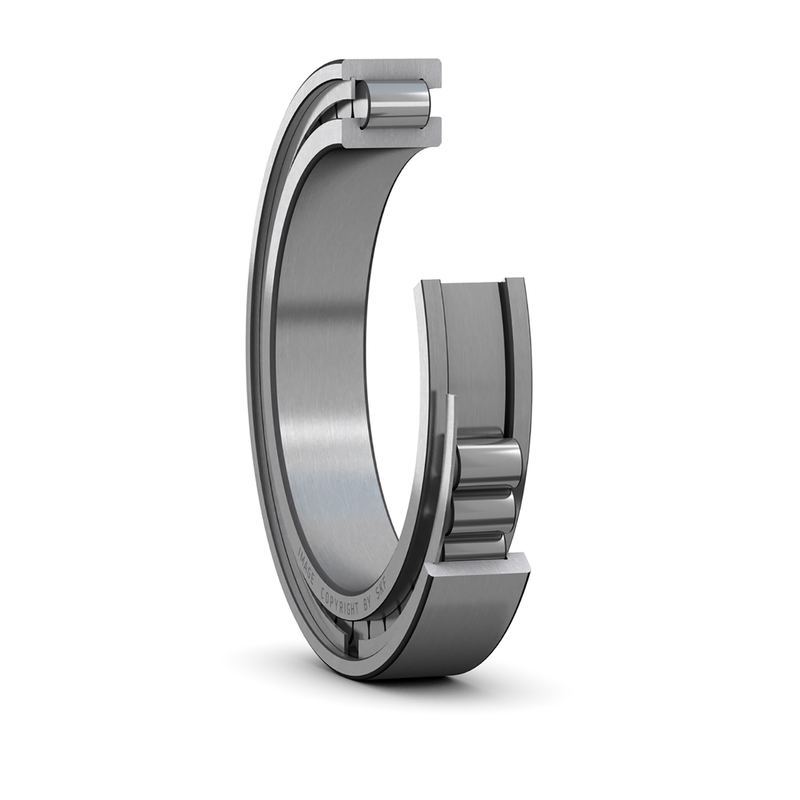

NCF 18/750 V

Product Attributes

Part Number	NCF 18/750 V
System of Measurement	Metric
Roller Bearing Type	Cylindrical
For Load Direction	Combined Radial and Thrust
Construction	Single Row Full Complement
Inner Ring Type	With Inner Ring
Seal Type	Open
Bore Dia	750 mm
Bore Dia Tolerance	-0.075mm to 0
Outer Dia	920 mm
Outer Dia Tolerance	-0.10mm to 0
Width	78 mm
Width Tolerance	-0.75mm to 0
Shoulder Diameter Inner Ring	811 mm
Shoulder Diameter Outer Ring	863 mm
Raceway Diameter Outer Ring	880 mm
Chamfer Dimension r1,2(min.)	5 mm
Permissible Axial Displacement(max.)	8 mm
Ring Material	52100 Chrome Steel
Roller Material	52100 Chrome Steel
Cage Material	Full complement of rollers (no cage)
Dynamic Load Rating	1760 kN
Static Load Rating	4300 kN
Lubrication	Grease, Oil
Temperature Range	-30° to 110 °C
RoHS	Compliant
REACH	Compliant
Weight	105 kg
