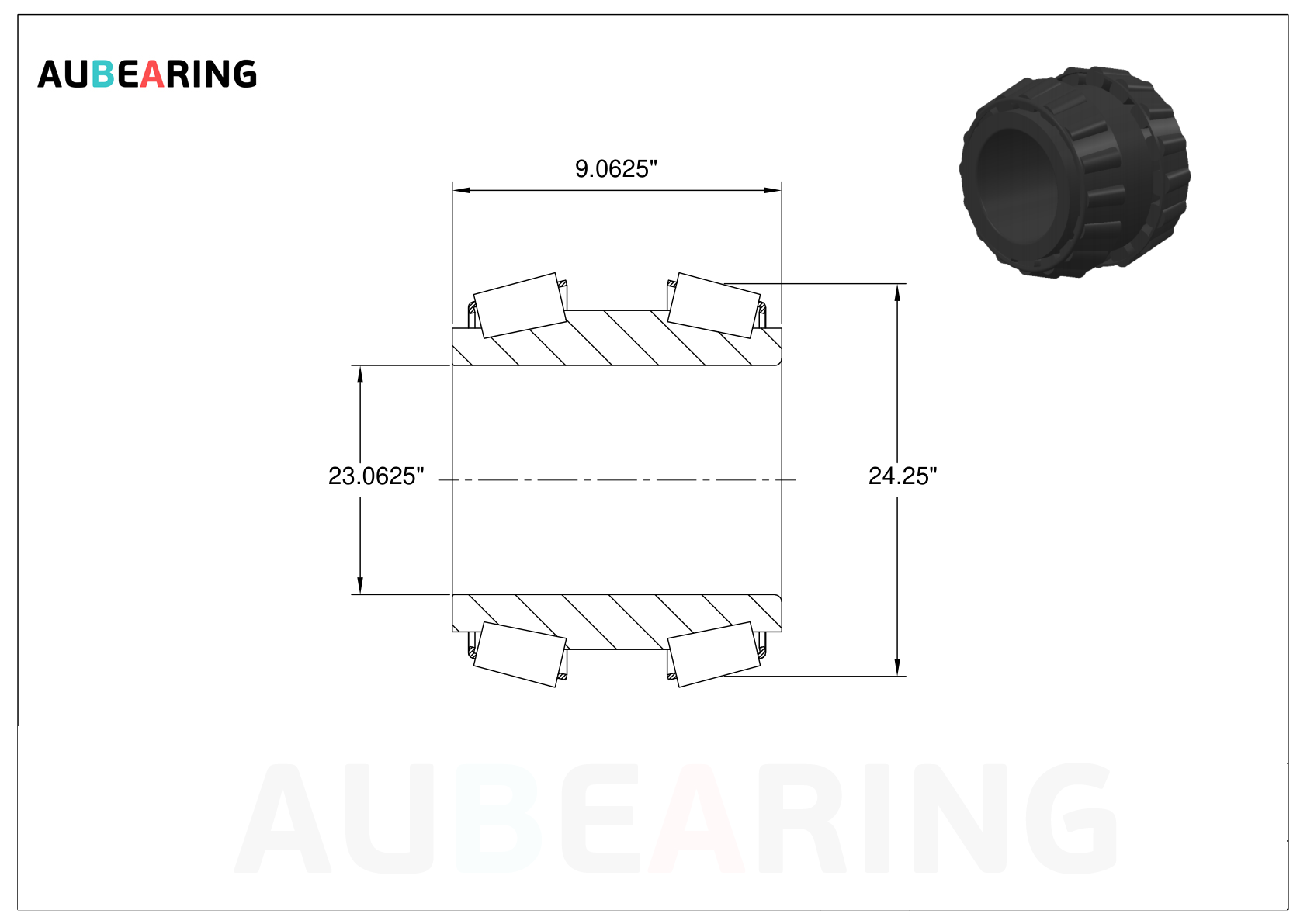

LM278848D

Product Attributes

Part Number	LM278848D
Type	Cones
System of Measurement	Inch
Bearing Type	Roller
Roller Bearing Type	Tapered Roller
For Load Direction	Combined Radial and Thrust
Construction	Double Row
Seal Type	Open
Series	LM278800
Bore Dia	23.0625"
Bore Dia Tolerance	+0.051" to 0
Double Cone Width	9.0625"
Double Cone Width Tolerance	+0.076" to -0.254"
Cone Backface ToClear Radius	0.25"
Cone Frontface Backing Diameter	24.25"
Cone Backface Backing Diameter	24.25"
Cage Cone Frontface Clearance	0.31"
Static Radial Load	1860000 lbf
Roller Material	52100 Chrome Steel
Cage Material	Pin-Type
Dynamic Radial Rating(90 Million Revolutions)	192000 lbf
Dynamic Radial Rating(Two Row 1 Million Revolutions)	1290000 lbf
Dynamic Radial Rating(1 Million Revolutions)	740000 lbf
Dynamic Thrust Rating(90 Million Revolutions)	109000 lbf
Dynamic Radial Rating(Two Row 90 Million Revolutions)	334000 lbf
Heat Generation Factor(Rib Roller End)(G2)	784
Heat Generation Factor(Roller Raceway)(G1)	11600
Temperature Range	-30° to 110 °C
ABEC Rating	ABEC-1
Radial Clearance	Standard (Available in C3/C4/C5)
RoHS	Compliant
REACH	Compliant
