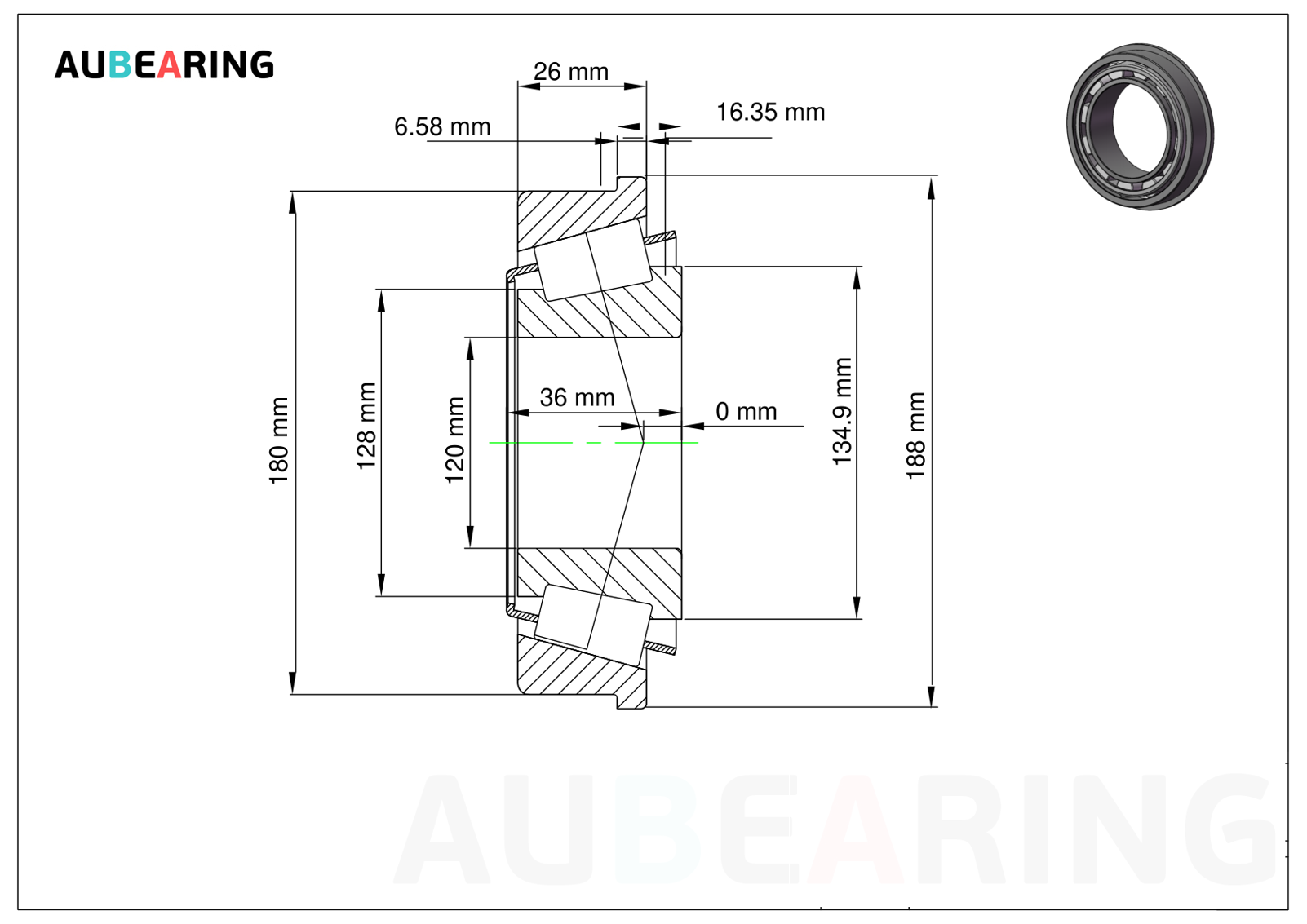

| Part Number | JM624649-JM624610-B |
| Type | Bearing |
| System of Measurement | Metric |
| Bearing Type | Roller |
| Roller Bearing Type | Tapered Roller |
| For Load Direction | Combined Radial and Thrust |
| Construction | Single Row |
| Seal Type | Open |
| Cups Type | Flanged |
| Series | M624600 |
| Bore Dia | 120 mm |
| Bore Dia Tolerance | -0.02mm to 0 |
| Outer Dia | 180 mm |
| Outer Dia Tolerance | -0.025mm to 0 |
| Cone Width | 36 mm |
| Cone Width Tolerance | -0.15mm to 0 |
| Cup Width | 26 mm |
| Cup Width Tolerance | -0.2mm to 0 |
| Flange Outer Diameter(D1) | 188 mm |
| Cup Flange Width(C1) | 6.58 mm |
| Flange Bearing Width(T1) | 16.35 mm |
| Cone Backface ToClear Radius | 3.6 mm |
| Cup Backface ToClear Radius | 1.5 mm |
| Cone Frontface Backing Diameter | 128 mm |
| Cone Backface Backing Diameter | 134.9 mm |
| Cup Frontface Backing Diameter | 175.01 mm |
| Cage Cone Frontface Clearance | 3.3 mm |
| Cage Cone Backface Clearance | 3.3 mm |
| Effective Center Location | 0 mm |
| Ring Material | 52100 Chrome Steel |
| Roller Material | 52100 Chrome Steel |
| Cage Material | Steel |
| Dynamic Radial Load | 55575 lbf |
| Static Radial Load | 84825 lbf |
| Dynamic Radial Rating(90 Million Revolutions)(C90) | 14400 lbf |
| Dynamic Thrust Rating(90 Million Revolutions)(Ca90) | 10192.5 lbf |
| Lubrication | Required |
| Temperature Range | -30° to 110 °C |
| ABEC Rating | ABEC-1 |
| Radial Clearance | Standard (Available in C3/C4/C5) |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 6.61 lb |
JM624649-JM624610-B TSF (Single Row Tapered Roller Bearings with Flange) (Metric) consist of a tapered inner ring assembly and an outer ring. They have flanged outer rings so that the housing through-hole can be precisely aligned. JM624649-JM624610-B bore dia is 120 mm. Its out dia is 180 mm. JM624649-JM624610-B roller material is Roller_Material. Its seal type is Seal_Bearing. The JM624649-JM624610-B TSF (Single Row Tapered Roller Bearings with Flange) (Metric) can bear both radial and axial loads with ease and provides low friction during operation even under the most severe conditions.
Gearing Systems and Transmissions, Thermal Power Coal Transporters, Port Equipment, Rubber and other Industrial applications, Machine Tool Spindles, Gear Reducer, Automotive Drive Axle, Aircraft wheels, Agricultural Wheels, Tensioning Roller, Raking Machine, Construction and Mining Equipment, Railroad Axle-box, etc.
Several factors must be considered for choosing tapered roller bearings. These factors include the roller material, design, shields and seals, cage, Annual Bearing Engineering Committee (ABEC) grade, radial clearance, and lubricant, etc.
