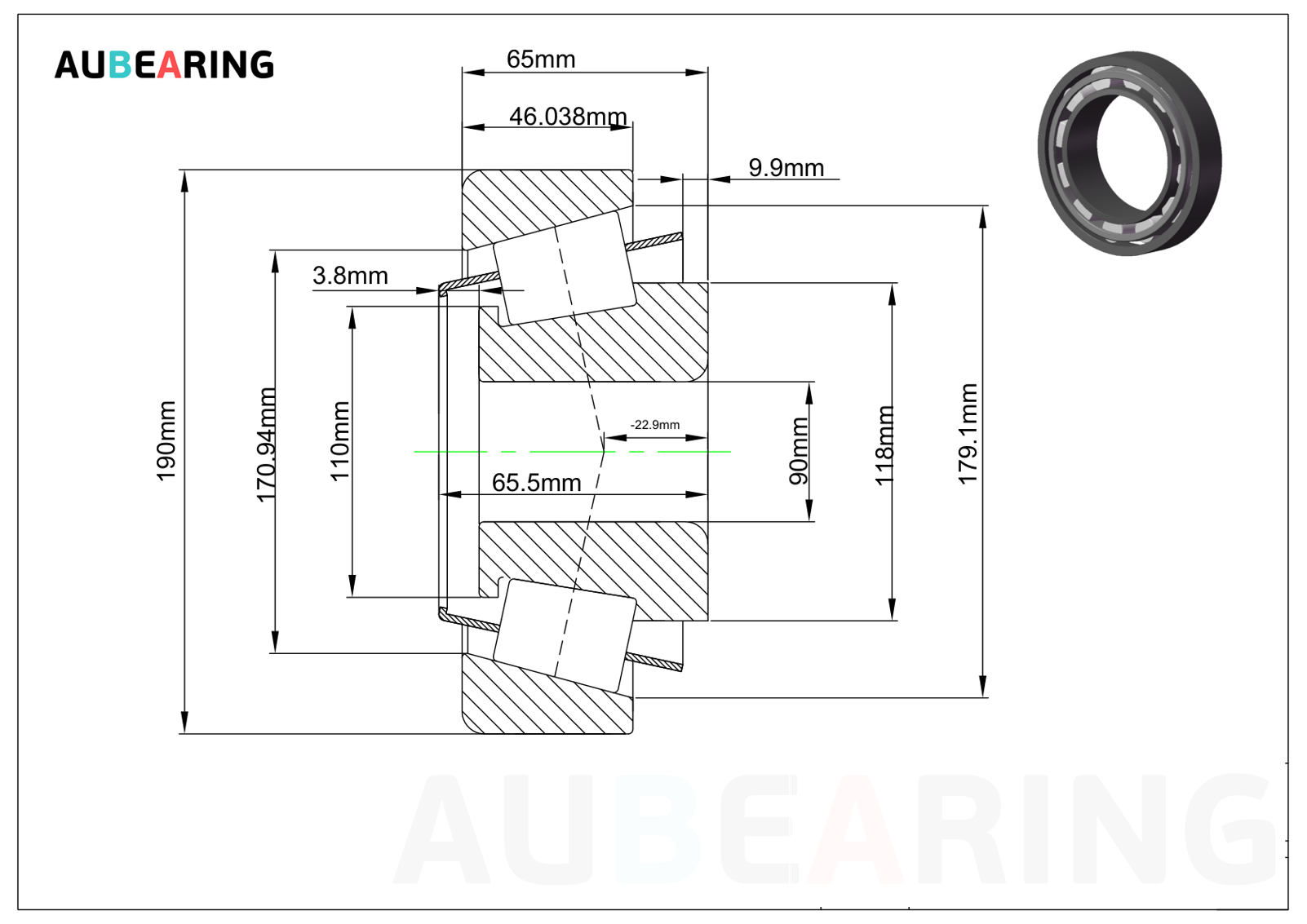

| Part Number | JHH221437P-JHH221413 |
| Type | Bearing |
| System of Measurement | Metric |
| Bearing Type | Roller |
| Roller Bearing Type | Tapered Roller |
| For Load Direction | Combined Radial and Thrust |
| Construction | Single Row |
| Seal Type | Open |
| Cups Type | Standard |
| Series | HH221400 |
| Bore Dia | 90 mm |
| Bore Dia Tolerance | -0.02mm to 0 |
| Outer Dia | 190 mm |
| Outer Dia Tolerance | -0.03mm to 0 |
| Cone Width | 65.5 mm |
| Cone Width Tolerance | -0.15mm to 0 |
| Cup Width | 46.038 mm |
| Cup Width Tolerance | -0.25mm to 0 |
| Width | 65 mm |
| Width Tolerance | +0.2mm to -0.2mm |
| Cone Backface ToClear Radius | 4.06 mm |
| Cup Backface ToClear Radius | 3.3 mm |
| Cone Frontface Backing Diameter | 110 mm |
| Cone Backface Backing Diameter | 118 mm |
| Cup Frontface Backing Diameter | 179.10 mm |
| Cup Backface Backing Diameter | 170.94 mm |
| Cage Cone Frontface Clearance | 3.8 mm |
| Cage Cone Backface Clearance | 9.9 mm |
| Effective Center Location | -22.9 mm |
| Ring Material | 52100 Chrome Steel |
| Roller Material | 52100 Chrome Steel |
| Cage Material | Steel |
| Dynamic Radial Load | 130050 lbf |
| Static Radial Load | 155700 lbf |
| Dynamic Radial Rating(90 Million Revolutions)(C90) | 33750 lbf |
| Dynamic Thrust Rating(90 Million Revolutions)(Ca90) | 19327.5 lbf |
| Lubrication | Required |
| Temperature Range | -30° to 110 °C |
| ABEC Rating | ABEC-1 |
| Radial Clearance | Standard (Available in C3/C4/C5) |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 18.30 lb |
JHH221437P-JHH221413 TS (Single Row Tapered Roller Bearings) (Metric) consist of a tapered inner ring assembly and an outer ring. JHH221437P-JHH221413 bore dia is 90 mm. Its out dia is 190 mm. JHH221437P-JHH221413 roller material is Roller_Material. Its seal type is Seal_Bearing. The JHH221437P-JHH221413 TS (Single Row Tapered Roller Bearings) (Metric) can bear both radial and axial loads with ease and provides low friction during operation even under the most severe conditions.
Mining machines, rolling mills, metallurgy, hydraulic generators, vertical generators, propeller shafts for ships, tower cranes, extruders, gear systems and transmissions, transport vehicles, port tower crane equipment, machine tool spindles, gear reducers, automobile drives, Aircraft wheels, agricultural wheels, tensioning rollers, rakes, construction and mining equipment, railway axles – etc.
Several factors must be considered for choosing tapered roller bearings. These factors include the roller material, design, shields and seals, cage, Annual Bearing Engineering Committee (ABEC) grade, radial clearance, and lubricant, etc.
