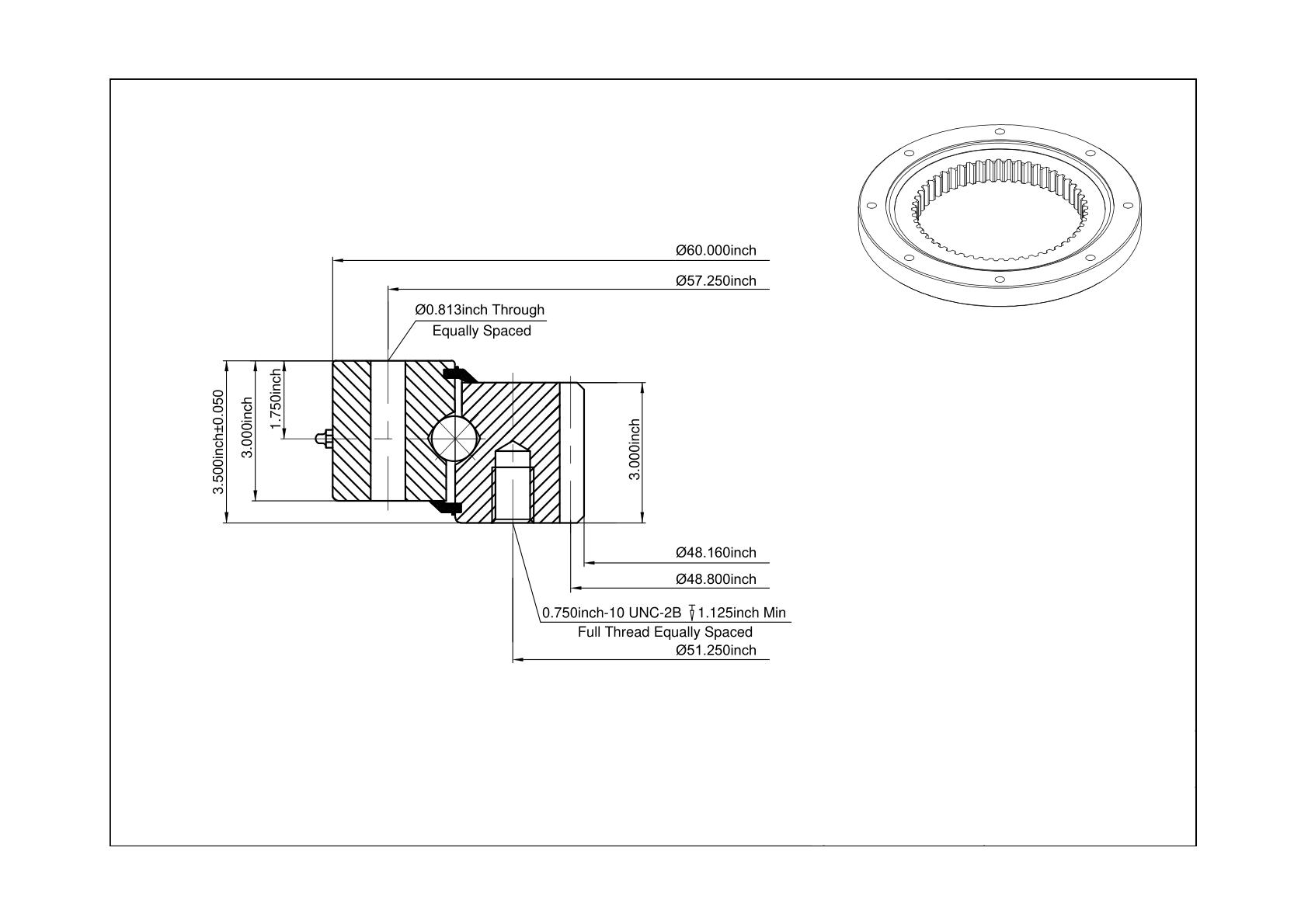

Part Number | HT10-54N1Z |
Gear | Internal gear |
Type | Ball |
Bearing Type | Standard |
Product Type | Slewing Beraing |
For Load Direction | Four Point Contact |
System of Measurement | Inch |
Inside Diameter Of Inner Ring | 48.16" |
Outside Diameter Of Outer Ring | 60" |
Height Of Overall Bearing Assembly | 3.5" |
Height Of Inner Ring | 3" |
Height Of Outer Ring | 3" |
Bolt Circle In Inner Ring | 51.25" |
Bolt Circle In Outer Ring | 57.25" |
Number Holes In Inner Ring | 44 |
Number Holes In Outer Ring | 40 |
Pitch Diameter Of Gear | 48.8" |
Diametral Pitch Or Module | 2.5 |
Number Of Gear Teeth | 122 |
Max Gear Tooth Load Fz | 20344 lbs |
Moment Load Rating | 578400 ft-lbs |
Ring Material | 42CRO or 50MN |
Ball Materrial | 52100 Chrome Steel |
Cage Material | Nylon or 300 Series Stainless Steel |
Seal Material | NBR |
RoHS | Compliant |
Weight | 775 lbs |
