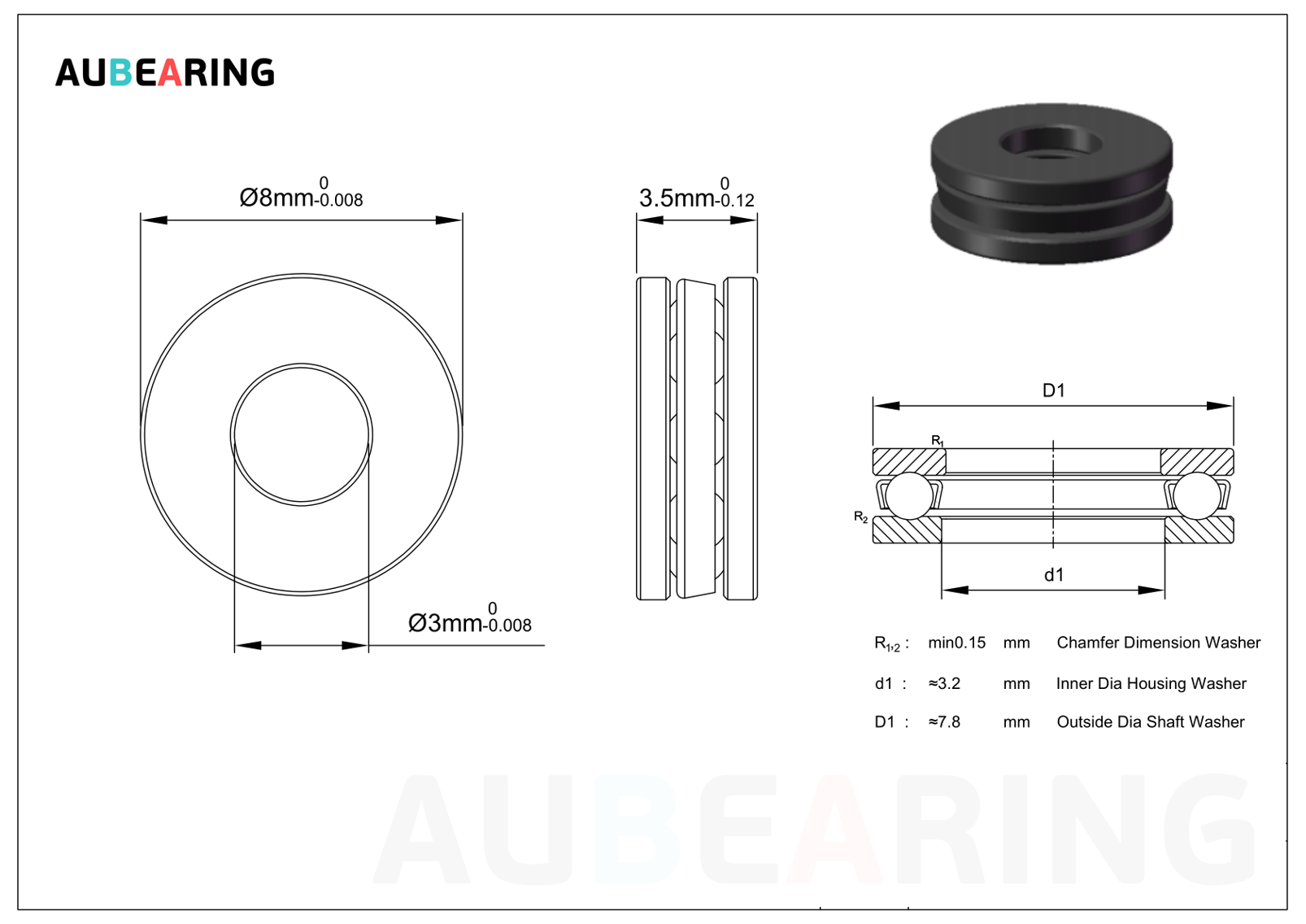

Part Number | F3-8M |
System of Measurement | Metric |
Bearing Type | Ball |
Washers Type | grooved raceway |
For Load Direction | Thrust |
Inner Ring Type | Standard |
Seal Type | Open |
Bore Dia | 3 mm |
Bore Dia Tolerance | -0.008mm to 0 |
Outer Dia | 8 mm |
Outer Dia Tolerance | -0.008mm to 0 |
Housing Washer ID | 3.2 mm |
Shaft Washer OD | 7.8 mm |
Height | 3.5 mm |
Height Tolerance | -0.12mm to 0 |
Washer Material | 52100 Chrome Steel |
Ball Material | 52100 Chrome Steel |
Cage Material | Bronze |
Dynamic Thrust Load | 600 N |
Static Thrust Load | 480 N |
Max Speed (X1000 rpm) | 11 |
Lubrication | Required |
Temperature Range | -30° to 110 °C |
RoHS | Compliant |
REACH | Compliant |
Ball Dia | 1.588 mm |
Ball Qty | 6 |
Weight | 0.9 g |
F3-8M Miniature Thrust Ball Bearings are a kind of separation bearings. F3-8M bore dia is 3 mm. Its out dia is 8 mm. F3-8M ball material is 52100 Chrome Steel. Its seal type is Open. F3-8M Miniature Thrust Ball Bearings are designed to bear thrust loads while operating at high speeds.
Automobiles, Motors, Electrical Appliances, Furniture, Packaging Machinery, Food Chemical Machinery, Fitness Equipment, Construction Machinery, Medical Instruments, Printing Machinery, Machine Tools, Flow Meters, Robotics Industry, Gas Meters, Anemometer, Crane hook, Oil rig, Rolling mill roll neck, etc.
Several factors must be considered for choosing Miniature Thrust Ball Bearings. These factors include the ring material, design, shields and seals, cage, Annual Bearing Engineering Committee (ABEC) grade, axial loads, and lubricant, etc.
