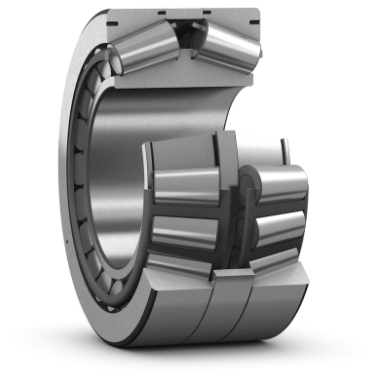

BT2B 332780/HA5

Product Attributes

Part Number	BT2B 332780/HA5
Type	Bearing
System of Measurement	Metric
Bearing Type	Roller
Roller Bearing Type	Tapered Roller
For Load Direction	Combined Radial and Thrust
Construction	Double Row
Seal Type	Open
Cups Type	Standard
Bore Dia	1160 mm
Bore Dia Tolerance	-0.13mm to 0
Outer Dia	1540 mm
Outer Dia Tolerance	-0.165mm to 0
Double Cone Width	400 mm
Double Cone Width Tolerance	-0.3mm to 0
Bearing Width	400 mm
Bearing Width Tolerance	+0.45mm to -0.45mm
Abutment Diameter Shaft	1329 mm
Abutment Diameter Housing	1329 mm
Chamfer Dimension Inner Ring	min.12.0 mm
Chamfer Dimension Outer Ring	min.4.0 mm
Dynamic Radial Load	3195000 lbf
Static Radial Load	8550000 lbf
Ring Material	52100 Chrome Steel
Roller Material	52100 Chrome Steel
Fatigue Load Limit	486000 lbf
Comparative Radial Load Rating	798750 lbf
Comparative Axial Load Rating	343575 lbf
Distance Pressure Point	585 mm
Lubrication	Required
Temperature Range	-30° to 110 °C
ABEC Rating	ABEC-1
Radial Clearance	Standard (Available in C3/C4/C5)
RoHS	Compliant
REACH	Compliant
Weight	4188.78 lb
