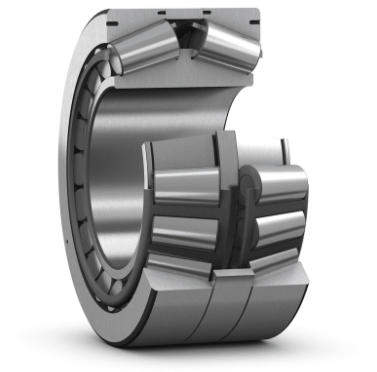

BT2B 332625

Product Attributes

Part Number	BT2B 332625
Type	Bearing
System of Measurement	Metric
Bearing Type	Roller
Roller Bearing Type	Tapered Roller
For Load Direction	Combined Radial and Thrust
Construction	Double Row
Seal Type	Open
Cups Type	Standard
Bore Dia	774.962 mm
Bore Dia Tolerance	-0.08mm to 0
Outer Dia	1016 mm
Outer Dia Tolerance	-0.13mm to 0
Double Cone Width	266.7 mm
Double Cone Width Tolerance	-0.3mm to 0
Bearing Width	266.7 mm
Bearing Width Tolerance	+0.4mm to -0.4mm
Abutment Diameter Shaft	880 mm
Abutment Diameter Housing	880 mm
Chamfer Dimension Inner Ring	min.8.0 mm
Chamfer Dimension Outer Ring	min.2.5 mm
Dynamic Radial Load	1619325 lbf
Static Radial Load	4050000 lbf
Ring Material	52100 Chrome Steel
Roller Material	52100 Chrome Steel
Fatigue Load Limit	261000 lbf
Comparative Radial Load Rating	396000 lbf
Comparative Axial Load Rating	128250 lbf
Distance Pressure Point	321 mm
Lubrication	Required
Temperature Range	-30° to 110 °C
ABEC Rating	ABEC-1
Radial Clearance	Standard (Available in C3/C4/C5)
RoHS	Compliant
REACH	Compliant
Weight	1157.43 lb
