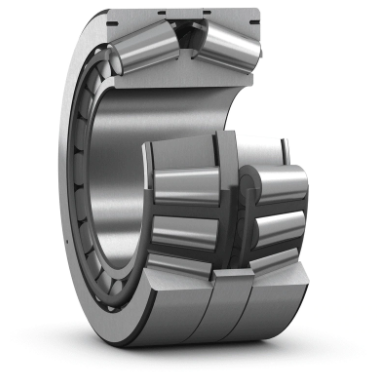

BT2B 332176 A

Product Attributes

Part Number	BT2B 332176 A
Type	Bearing
System of Measurement	Metric
Bearing Type	Roller
Roller Bearing Type	Tapered Roller
For Load Direction	Combined Radial and Thrust
Construction	Double Row
Seal Type	Open
Cups Type	Standard
Bore Dia	447.675 mm
Bore Dia Tolerance	-0.045mm to 0
Outer Dia	635 mm
Outer Dia Tolerance	-0.075mm to 0
Double Cone Width	257.175 mm
Double Cone Width Tolerance	-0.25mm to 0
Bearing Width	257.175 mm
Bearing Width Tolerance	+0.4mm to -0.4mm
Abutment Diameter Shaft	534 mm
Abutment Diameter Housing	534 mm
Chamfer Dimension Inner Ring	min.6.4 mm
Chamfer Dimension Outer Ring	min.1.5 mm
Dynamic Radial Load	990000 lbf
Static Radial Load	2475000 lbf
Ring Material	52100 Chrome Steel
Roller Material	52100 Chrome Steel
Fatigue Load Limit	180000 lbf
Comparative Radial Load Rating	247500 lbf
Comparative Axial Load Rating	80550 lbf
Distance Pressure Point	237 mm
Lubrication	Required
Temperature Range	-30° to 110 °C
ABEC Rating	ABEC-1
Radial Clearance	Standard (Available in C3/C4/C5)
RoHS	Compliant
REACH	Compliant
Weight	540.13 lb
