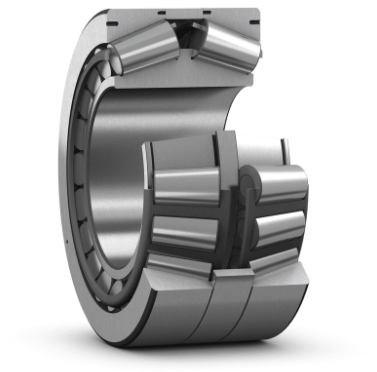

BT2B 328339/HA4

Product Attributes

Part Number	BT2B 328339/HA4
Type	Bearing
System of Measurement	Metric
Bearing Type	Roller
Roller Bearing Type	Tapered Roller
For Load Direction	Combined Radial and Thrust
Construction	Double Row
Seal Type	Open
Cups Type	Standard
Bore Dia	1250 mm
Bore Dia Tolerance	-0.15mm to 0
Outer Dia	1500 mm
Outer Dia Tolerance	-0.165mm to 0
Double Cone Width	250 mm
Double Cone Width Tolerance	-0.35mm to 0
Bearing Width	250 mm
Bearing Width Tolerance	+0.45mm to -0.45mm
Abutment Diameter Shaft	1355 mm
Abutment Diameter Housing	1355 mm
Chamfer Dimension Inner Ring	min.6.0 mm
Chamfer Dimension Outer Ring	min.1.5 mm
Dynamic Radial Load	1658250 lbf
Static Radial Load	5040000 lbf
Ring Material	52100 Chrome Steel
Roller Material	52100 Chrome Steel
Fatigue Load Limit	297000 lbf
Comparative Radial Load Rating	405000 lbf
Comparative Axial Load Rating	135000 lbf
Distance Pressure Point	438 mm
Lubrication	Required
Temperature Range	-30° to 110 °C
ABEC Rating	ABEC-1
Radial Clearance	Standard (Available in C3/C4/C5)
RoHS	Compliant
REACH	Compliant
Weight	1752.67 lb

AUB Bearing Company is a manufacturer of various types of bearings, including deep groove ball bearings, thin section bearings, angular contact ball bearings, cylindrical roller bearings, tapered roller bearings, and spherical roller bearings. AUB's bearings are used in a wide range of applications, including automotive, wind energy, railway, mining, agriculture, and construction machinery. Our company's bearings are known for their high-performance, durability, and long service life.

AUB Bearing Company has a strong focus on research and development and invests heavily in new technologies and processes. The company's goal is to provide high-quality bearings that meet or exceed customer expectations in terms of performance, reliability, and durability.AUB offers customized bearing manufacturing solutions to meet the specific needs of its customers. The company has a team of experienced engineers who can design and develop bearings to meet specific requirements, such as high-speed, high-temperature, or corrosive environments.

AUB has a strong quality control system and follows rigorous testing procedures to ensure that its bearings meet international standards. The company has received certifications such as ISO 9001, ISO/TS 16949, and ISO 14001.

If you have any questions, please feel free to contact our bearing experts. 7*24 service for you. Email: info@aubearing.com.

Aubearing is an ISO certified Chinese bearing manufacturer and supplier. Competitive prices, 1,200,000+ SKU inventory, including internationally renowned brands such as SKF, Timken, Schaeffler (FAG, INA), NSK, KOYO, NTN, McGill, etc. Aubearing has invested in 300+ equipment, heat treatment facilities, lathes, grinders, milling machines, bearing production lines, CMMs, metallographic testers, etc. Leading Time<7 Days, MOQ=1.

Bearing Catalogue

Various types of ball bearings and roller bearings, size range: 1mm-2000mm. Including thin section bearings (KAYDON equivalents and 67, 68, 69 series), ceramic bearings, stainless steel bearings, deep groove ball bearings, angular contact bearings, thrust ball bearings, spherical roller bearings, cylindrical roller bearings, needle roller bearings, tapered roller bearings, precision crossed roller bearings, bushings (sleeve bearings), linear bearings, automotive wheel hub bearings and corresponding inch series.

Customization options: material (Gcr15, silicon nitride, silicon carbide, zirconium oxide, aluminum oxide, stainless steel 304, 316, 420, 440, PTFE\PEEK\nylon and other plastics), cage (brass, stamping steel, retainer), lubrication (lubricating oil, grease, high temperature resistance), clearance (C2\CN\C3\C4\C5), seal (nitrile rubber, silicone rubber, fluororubber, polypropylene rubber), shielding, etc.
