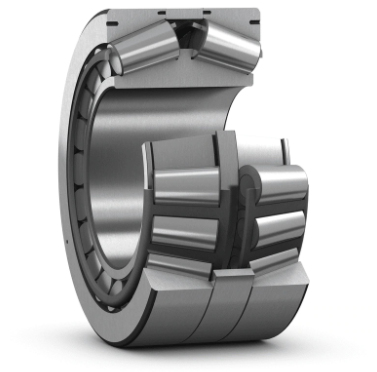

BT2B 328187/HA2

Product Attributes

Part Number	BT2B 328187/HA2
Type	Bearing
System of Measurement	Metric
Bearing Type	Roller
Roller Bearing Type	Tapered Roller
For Load Direction	Combined Radial and Thrust
Construction	Double Row
Seal Type	Open
Cups Type	Standard
Bore Dia	260.35 mm
Bore Dia Tolerance	-0.035mm to 0
Outer Dia	422.275 mm
Outer Dia Tolerance	-0.045mm to 0
Double Cone Width	178.592 mm
Double Cone Width Tolerance	-0.2mm to 0
Bearing Width	178.592 mm
Bearing Width Tolerance	+0.35mm to -0.25mm
Abutment Diameter Shaft	331 mm
Abutment Diameter Housing	331 mm
Chamfer Dimension Inner Ring	min.6.8 mm
Chamfer Dimension Outer Ring	min.1.5 mm
Dynamic Radial Load	504000 lbf
Static Radial Load	911250 lbf
Ring Material	52100 Chrome Steel
Roller Material	52100 Chrome Steel
Fatigue Load Limit	79875 lbf
Comparative Radial Load Rating	123750 lbf
Comparative Axial Load Rating	40275 lbf
Distance Pressure Point	158 mm
Lubrication	Required
Temperature Range	-30° to 110 °C
ABEC Rating	ABEC-1
Radial Clearance	Standard (Available in C3/C4/C5)
RoHS	Compliant
REACH	Compliant
Weight	190.70 lb
