| Part Number | 52314 |
| System of Measurement | Metric |
| Bearing Type | Ball |
| For Load Direction | Thrust |
| Seal Type | Open |
| Bore Dia | 55 mm |
| Bore Dia Tolerance | -0.015mm to 0 |
| Outer Dia | 125 mm |
| Outer Dia Tolerance | -0.025mm to 0 |
| Height | 72 mm |
| Height Tolerance | +0.15mm to -0.5mm |
| Chamfer Dimension Housing Washer | 1.1 mm |
| Chamfer Dimension Shaft Washer | 1 mm |
| Inner Dia Housing Washer | 72 mm |
| Washer Material | 52100 Chrome Steel |
| Ball Material | 52100 Chrome Steel |
| Cage Material | Steel |
| Dynamic Thrust Load | 30349 lbf |
| Static Thrust Load | 71939 lbf |
| Max Speed (X1000 rpm) | 2 |
| Temperature Range | -30° to 110 °C |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 3.65 kg |

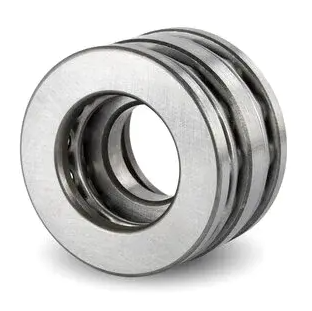

52314 Double Direction Thrust Ball Bearings are a kind of separation bearings. 52314 bore dia is 55 mm. Its out dia is 125 mm. 52314 ball material is 52100 Chrome Steel. Its seal type is Open. 52314 Double Direction Thrust Ball Bearings are designed to bear thrust loads while operating at high speeds.
Automobiles, Motors, Electrical Appliances, Furniture, Packaging Machinery, Food Chemical Machinery, Fitness Equipment, Construction Machinery, Medical Instruments, Printing Machinery, Machine Tools, Flow Meters, Robotics Industry, Gas Meters, Anemometer, Crane hook, Oil rig, Rolling mill roll neck, etc.
Several factors must be considered for choosing Double Direction Thrust Ball Bearings. These factors include the ring material, design, shields and seals, cage, Annual Bearing Engineering Committee (ABEC) grade, axial loads, and lubricant, etc.
