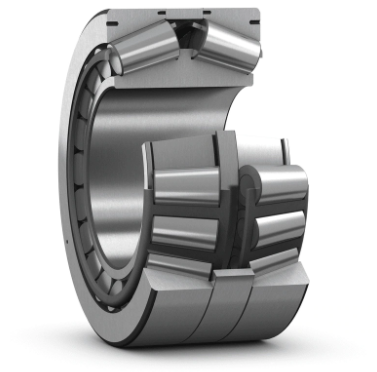

331197 A

Product Attributes

Part Number	331197 A
Type	Bearing
System of Measurement	Metric
Bearing Type	Roller
Roller Bearing Type	Tapered Roller
For Load Direction	Combined Radial and Thrust
Construction	Double Row
Seal Type	Open
Cups Type	Standard
Bore Dia	384.175 mm
Bore Dia Tolerance	-0.04mm to 0
Outer Dia	546.1 mm
Outer Dia Tolerance	-0.05mm to 0
Double Cone Width	222.25 mm
Double Cone Width Tolerance	-0.25mm to 0
Bearing Width	222.25 mm
Bearing Width Tolerance	+0.4mm to -0.4mm
Abutment Diameter Shaft	457 mm
Abutment Diameter Housing	457 mm
Chamfer Dimension Inner Ring	min.6.4 mm
Chamfer Dimension Outer Ring	min.0.6 mm
Dynamic Radial Load	837900 lbf
Static Radial Load	1867500 lbf
Ring Material	52100 Chrome Steel
Roller Material	52100 Chrome Steel
Fatigue Load Limit	144000 lbf
Comparative Radial Load Rating	205875 lbf
Comparative Axial Load Rating	67725 lbf
Distance Pressure Point	205 mm
Lubrication	Required
Temperature Range	-30° to 110 °C
ABEC Rating	ABEC-1
Radial Clearance	Standard (Available in C3/C4/C5)
RoHS	Compliant
REACH	Compliant
Weight	354.94 lb
