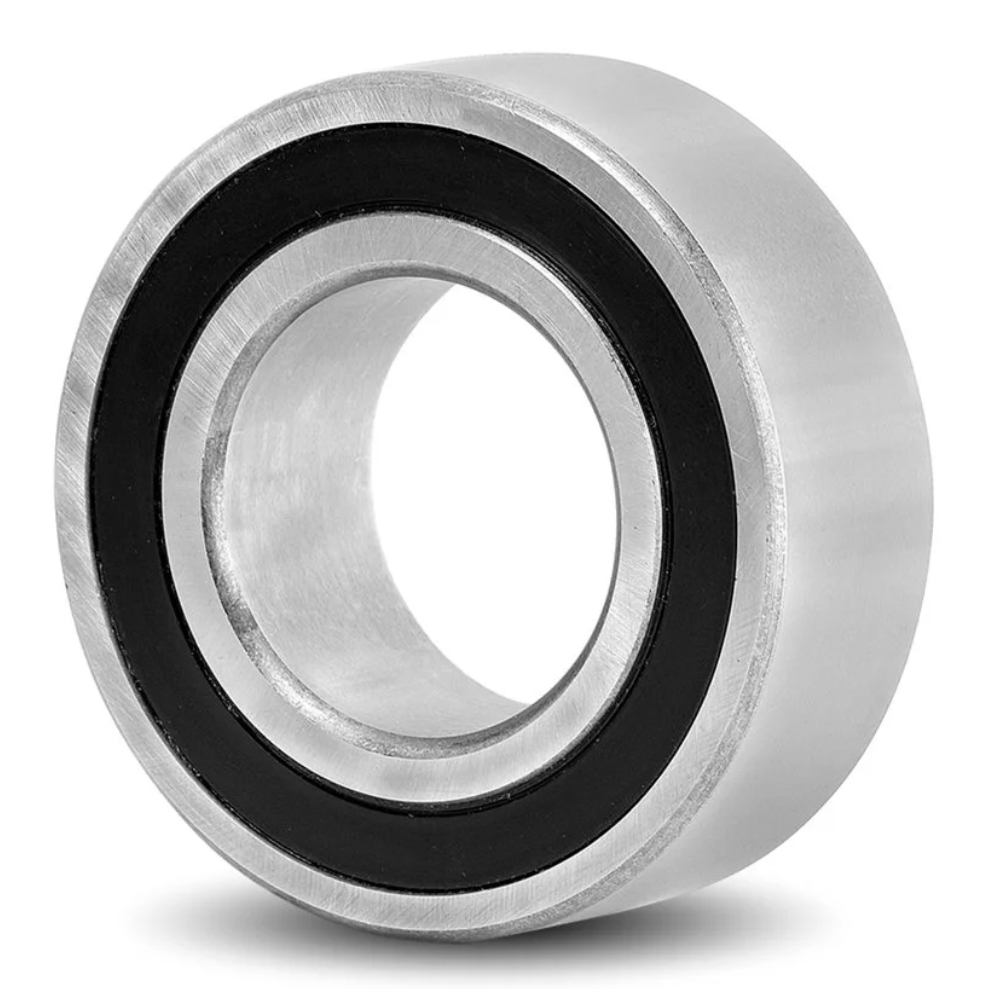

Part Number | 3303 A-2RS1TN9/MT33 |
Interchange | 5303 2rs |
System of Measurement | Metric |
Bearing Type | Ball |
Internal Design | High Speed |
For Load Direction | Combined Radial and Thrust |
Construction | Double Row |
Seal Type | Sealed |
Bore Dia | 17 mm |
Bore Dia Tolerance | -0.007mm to 0 |
Outer Dia | 47 mm |
Outer Dia Tolerance | -0.009mm to 0 |
Width | 22.2 mm |
Width Tolerance | -0.05mm to 0 |
Chamfer Dimension (r1 2)(min) | 1 mm |
Distance Pressure Point (a) | 28 mm |
Ring Material | 52100 Chrome Steel |
Ball Material | 52100 Chrome Steel |
Cage Material | Steel Cage |
Dynamic Radial Load | 21.6 kN |
Static Radial Load | 12.7 kN |
Max Speed (X1000 rpm) | 11 |
Lubrication | Lubricated |
Temperature Range | -30° to 110 °C |
ABEC Rating | P6 (ABEC-3) |
ROHS | Compliant |
REACH | Compliant |
Weight | 0.18 kg |
