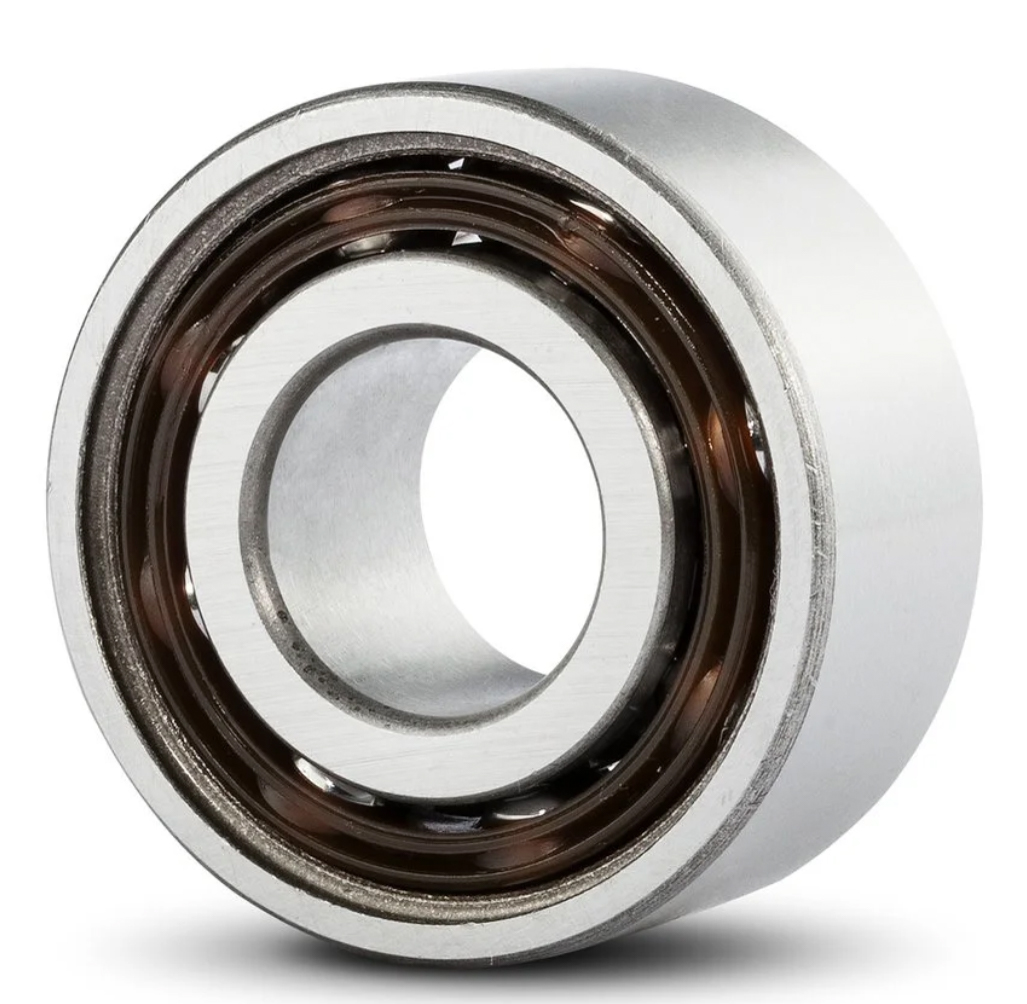

Part Number | 3219 A |
Interchange | 5219 |
System of Measurement | Metric |
Bearing Type | Ball |
Internal Design | High Speed |
For Load Direction | Combined Radial and Thrust |
Construction | Double Row |
Seal Type | Open |
Bore Dia | 95 mm |
Bore Dia Tolerance | -0.015mm to 0 |
Outer Dia | 170 mm |
Outer Dia Tolerance | -0.018mm to 0 |
Width | 55.6 mm |
Width Tolerance | -0.05mm to 0 |
Shoulder Diameter Inner Ring (Large Side Face)(d1) | 119.9 mm |
Shoulder Diameter Outer Ring (Large Side Face)(D1) | 146 mm |
Chamfer Dimension (r1 2)(min) | 2.1 mm |
Distance Pressure Point (a) | 101 mm |
Ring Material | 52100 Chrome Steel |
Ball Material | 52100 Chrome Steel |
Cage Material | Steel Cage |
Dynamic Radial Load | 159 kN |
Static Radial Load | 146 kN |
Max Speed (X1000 rpm) | 3.4 |
Lubrication | Lubricated |
Temperature Range | -30° to 110 °C |
ABEC Rating | P6 (ABEC-3) |
ROHS | Compliant |
REACH | Compliant |
Weight | 5 kg |
