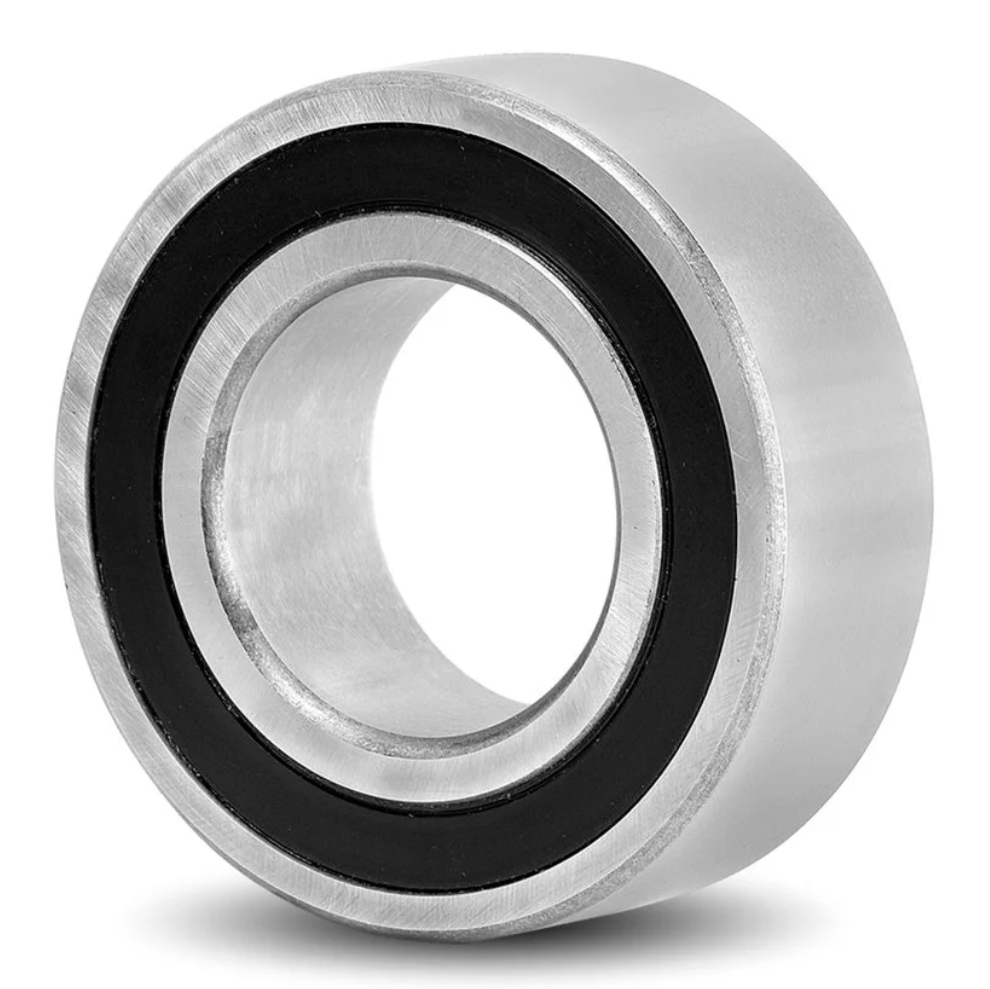

| Part Number | 3203 A-2RS1TN9/MT33 |
| Interchange | 5203 2rs |
| System of Measurement | Metric |
| Bearing Type | Ball |
| Internal Design | High Speed |
| For Load Direction | Combined Radial and Thrust |
| Construction | Double Row |
| Seal Type | Sealed |
| Bore Dia | 17 mm |
| Bore Dia Tolerance | -0.007mm to 0 |
| Outer Dia | 40 mm |
| Outer Dia Tolerance | -0.009mm to 0 |
| Width | 17.5 mm |
| Width Tolerance | -0.05mm to 0 |
| Chamfer Dimension (r1 2)(min) | 0.6 mm |
| Distance Pressure Point (a) | 23 mm |
| Ring Material | 52100 Chrome Steel |
| Ball Material | 52100 Chrome Steel |
| Cage Material | Steel Cage |
| Dynamic Radial Load | 14.3 kN |
| Static Radial Load | 8.8 kN |
| Max Speed (X1000 rpm) | 12 |
| Lubrication | Lubricated |
| Temperature Range | -30° to 110 °C |
| ABEC Rating | P6 (ABEC-3) |
| ROHS | Compliant |
| REACH | Compliant |
| Weight | 0.096 kg |
