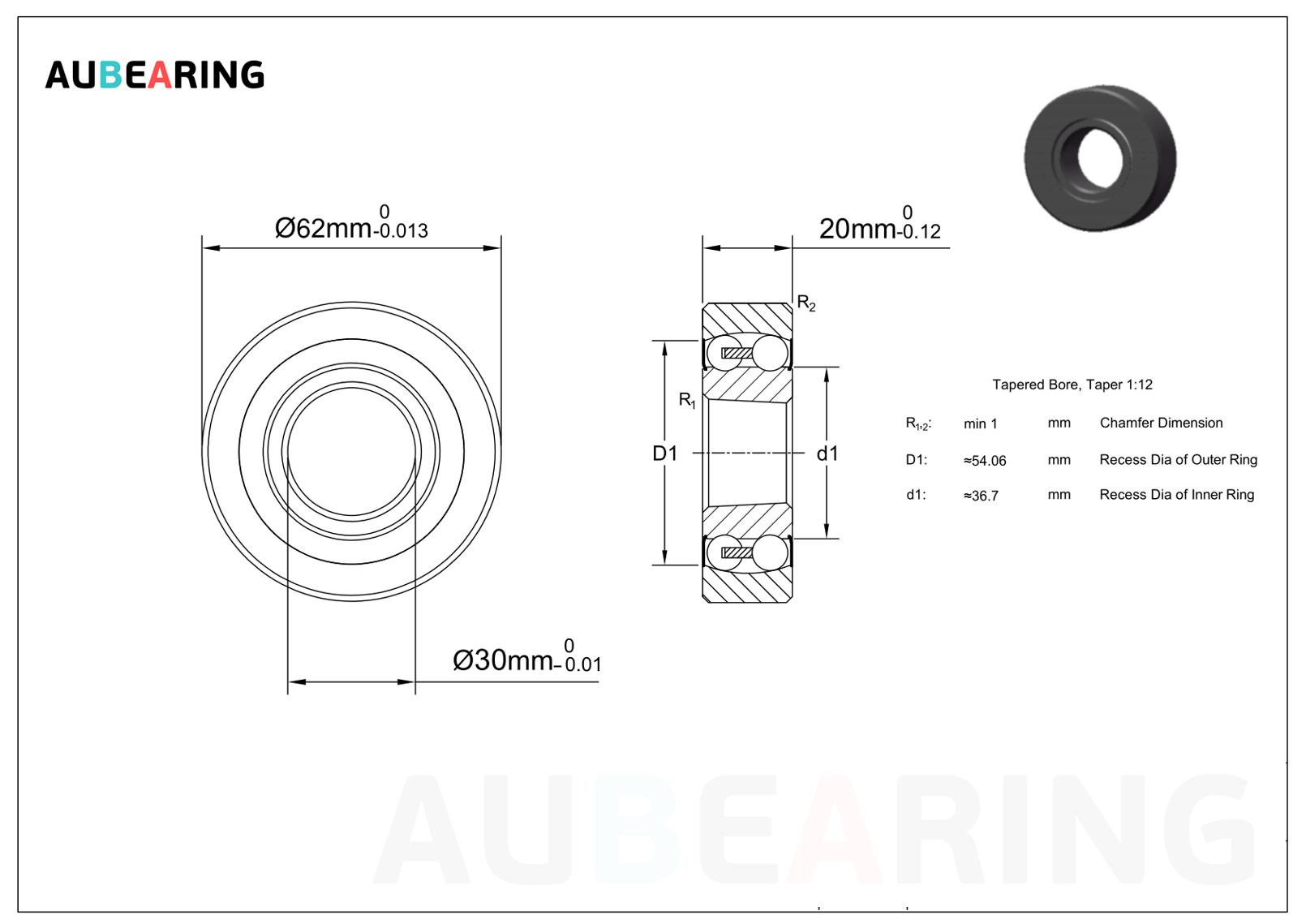

| Part Number | 2206 E-2RS1KTN9 |
| System of Measurement | Metric |
| Bearing Type | Ball |
| For Load Direction | Radial |
| Construction | Double Row |
| Seal Type | Sealed |
| Bore Dia | 30 mm |
| Bore Dia Tolerance | -0.01mm to 0 |
| Outer Dia | 62 mm |
| Outer Dia Tolerance | -0.013mm to 0 |
| Width | 20 mm |
| Width Tolerance | -0.12mm to 0 |
| Recess Dia Of Inner Ring | 36.7 mm |
| Recess Dia Of Outer Ring | 54.06 mm |
| Chamfer Dimension | 1 mm |
| Ring Material | 52100 Chrome Steel |
| Ball Material | 52100 Chrome Steel |
| Cage Material | PA66 Nylon |
| Dynamic Radial Load | 15.6 kN |
| Static Radial Load | 4.65 kN |
| Max Speed (X1000 rpm) | 7.5 |
| Lubrication | Lubricated |
| Temperature Range | -30° to 110 °C |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 0.26 kg |
