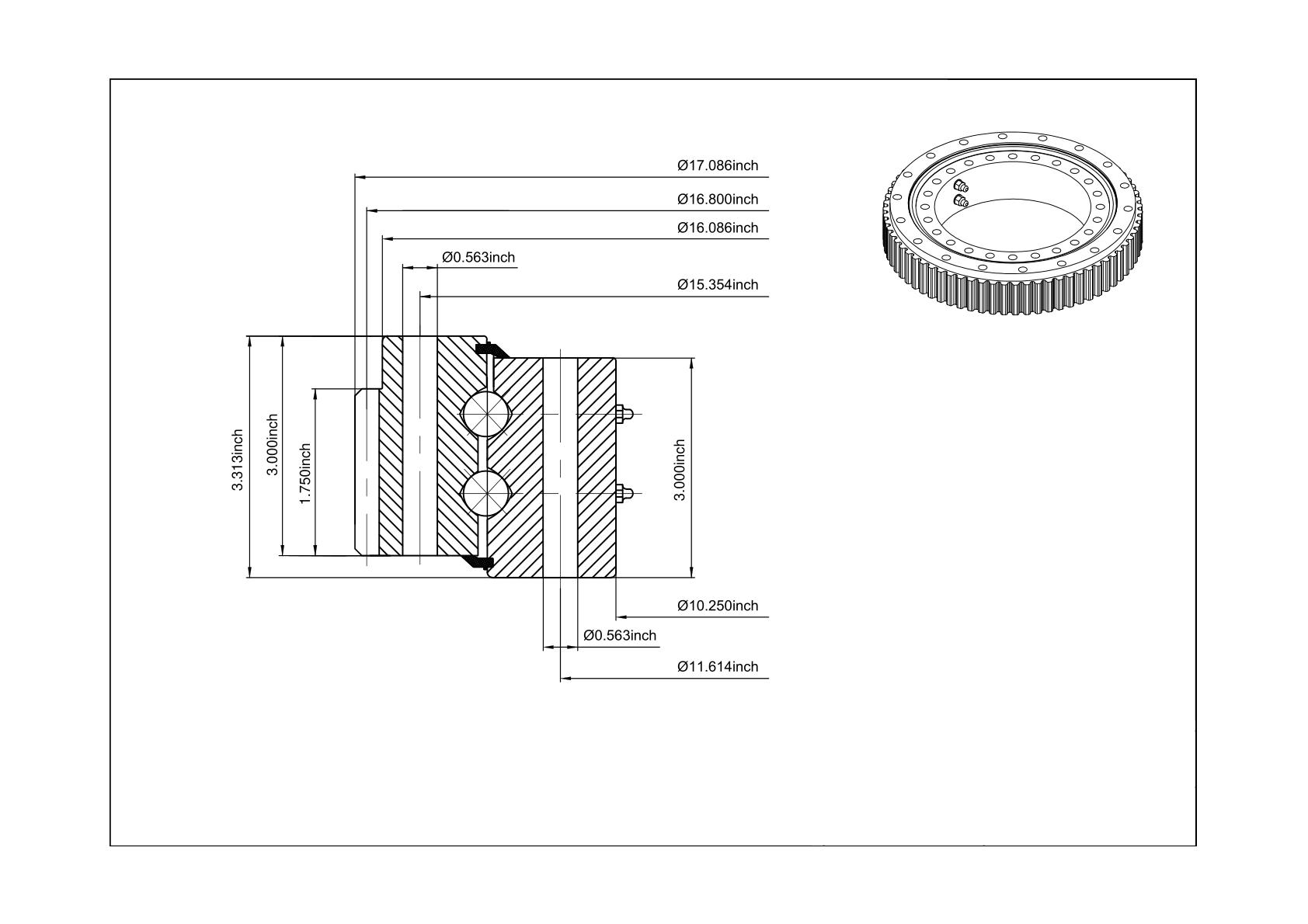

Part Number | 16258001 |
Gear | External gear |
Type | Ball |
Bearing Type | Standard |
Product Type | Slewing Beraing |
System of Measurement | Inch |
Inside Diameter Of Inner Ring | 10.25" |
Outside Diameter Of Outer Ring | 17.086" |
External Diameter On Outer Ring | 17.086" |
Height Of Overall Bearing Assembly | 3.313" |
Height Of Inner Ring | 3" |
Height Of Outer Ring | 3" |
Bolt Circle In Inner Ring | 11.614" |
Bolt Circle In Outer Ring | 15.354" |
Size Holes In Inner Ring | 0.563" |
Size Holes In Outer Ring | 0.563" |
Number Holes In Inner Ring | 24 |
Number Holes In Outer Ring | 18 |
Pitch Diameter Of Gear | 16.8" |
Diametral Pitch Or Module | 5/7 |
Number Of Gear Teeth | 84 |
Max Gear Tooth Load Fz | 6850 lbs |
Moment Load Rating | 65200 ft-lbs |
Tooth | FS |
Ring Material | 42CRO or 50MN |
Ball Materrial | 52100 Chrome Steel |
Cage Material | Nylon or 300 Series Stainless Steel |
Seal Material | NBR |
RoHS | Compliant |
Weight | 105 lbs |
Face Width Of Gear Teeth | 1.75" |
