092.40.2395.990.11.1502

Product Attributes

Part Number	092.40.2395.990.11.1502
Gear	Internal gear
Type	Ball
Bearing Type	Standard
Product Type	Slewing Beraing
System of Measurement	Metric
Inside Diameter Of Inner Ring	2142 mm
Outside Diameter Of Outer Ring	2403 mm
Internal Diameter On Outer Ring	2584 mm
External Diameter On Inner Ring	2393 mm
Height Of Overall Bearing Assembly	148 mm
Height Of Inner Ring	139 mm
Height Of Outer Ring	139 mm
Permissible Tooth Forces T	27292.5 lbs
Max Gear Tooth Load Fz	54600.75 lbs

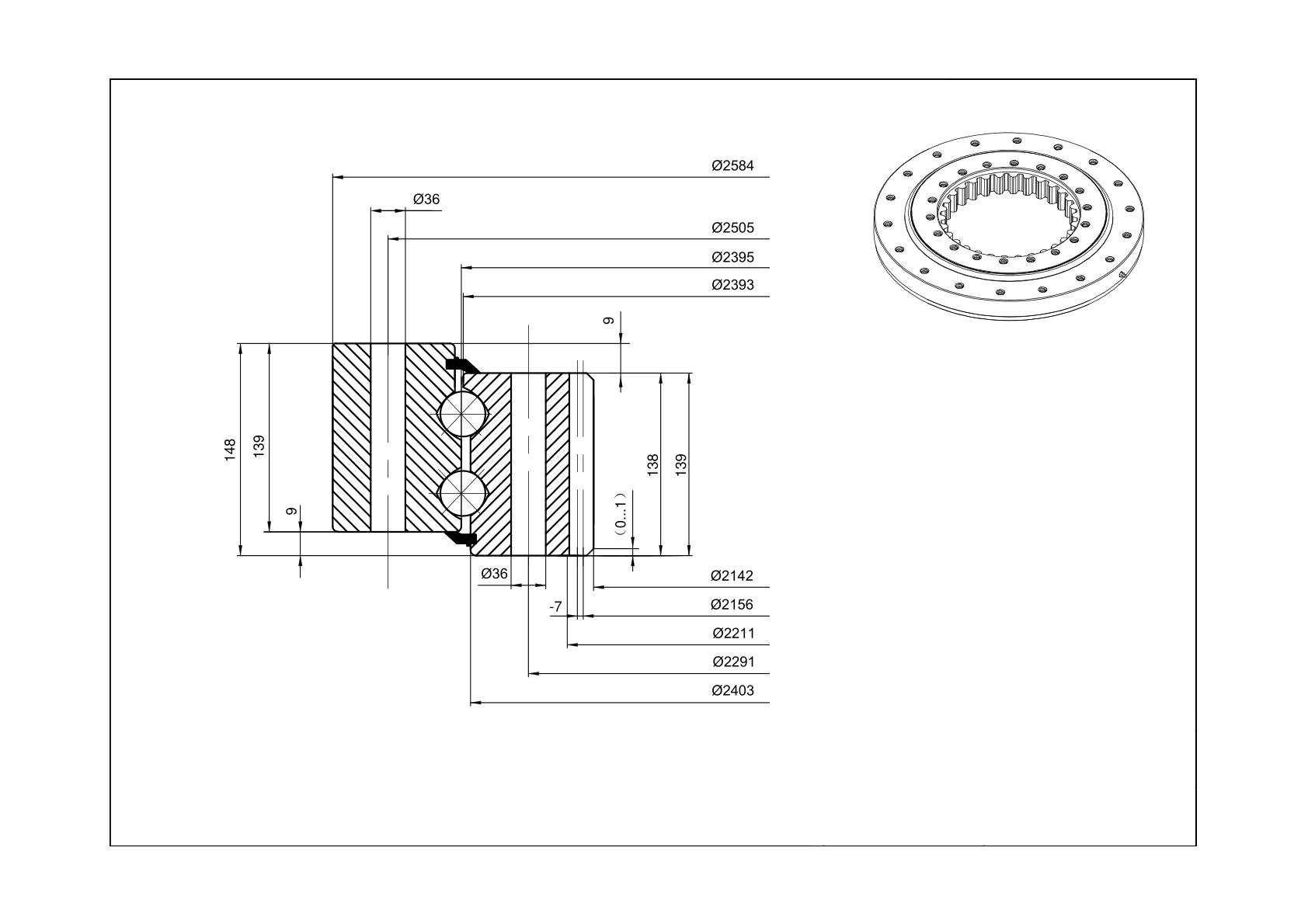

Correspond	FIG2
Ring Material	42CRO or 50MN
Ball Materrial	52100 Chrome Steel
Cage Material	Nylon or 300 Series Stainless Steel
Seal Material	NBR
RoHS	Compliant
Weight	1480 Kg
Diameter Of Bearing Raceway	2395 mm
Distance Between Bottom Outer Ring/Inner Ring	9 mm
Distance at top Outer Ring/Inner Ring	9 mm
